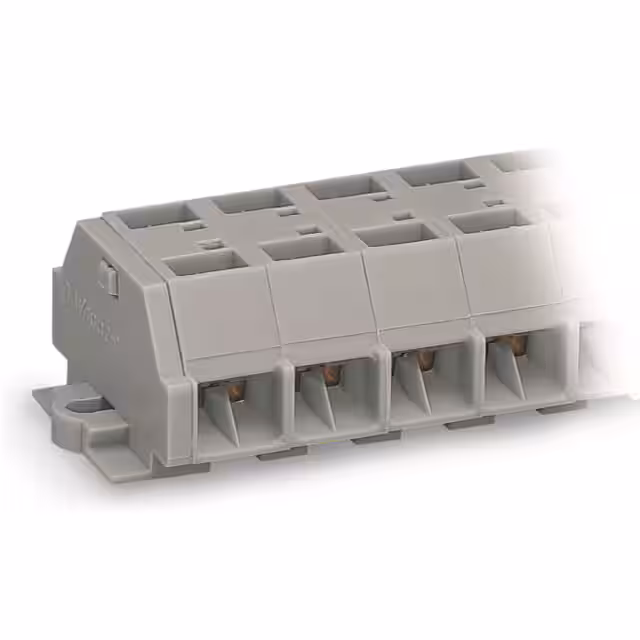

261-253

Manufacturer :

WAGO

Product Category :

Specialized

Cross section (flexible) (max.) :

2.50mm²

PPAP :

No

Manufacturer :

Wago

Stripping length (max.) :

9mm

Mounting Type :

Snap-In Clip

Height :

18mm

Pins per row :

4

Cross section (inflexible) (min.) :

0.08mm²

Color :

Gray

Stripping Length :

8mm ~ 9mm

Connection Type :

Spring Clamp

Operating Temperature :

-

Number of Levels :

1

Material Flammability Rating :

UL94 V-0

EU RoHS :

Compliant

Manufacturer part # :

261-253

Wire Gauge or Range - AWG :

14-28 AWG

Nominal voltage :

500V

Current - IEC :

24 A

Wire Gauge or Range - mm² :

0.08-2.5mm²

Cross section (flexible) (min.) :

0.08mm²

Termination Style :

Push In, Spring

Configuration :

L

Contamination level :

3

Automotive :

No

Height (Max) :

0.713 (18.11mm)

Approvals :

CSA, UR

AWG max. :

14

Features :

+ latch lock base

Min. stripping length :

8mm

Nominal current :

24A

Product Status :

Active

Voltage - IEC :

500 V

Number of Positions :

12

Nominal current - rounded value :

24A

Number of Poles :

3

Dim :

(W x H) 34.40 mm x 18 mm

RoHS :

yes

Cross section (inflexible) (max.) :

2.50mm²

Terminal - Width :

33.0mm

AWG (min.) :

28

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Clamp width :

10mm

Industrial packaging :

yes

Type :

261-253

Housing Color :

Gray

Width :

34.40mm

ECCN (US) :

EAR99

Series :

-

No. of rows :

3

Package :

Box

Content :

100pc(s)

Connection :

Pull spring

Length :

1.106 (28.09mm)
