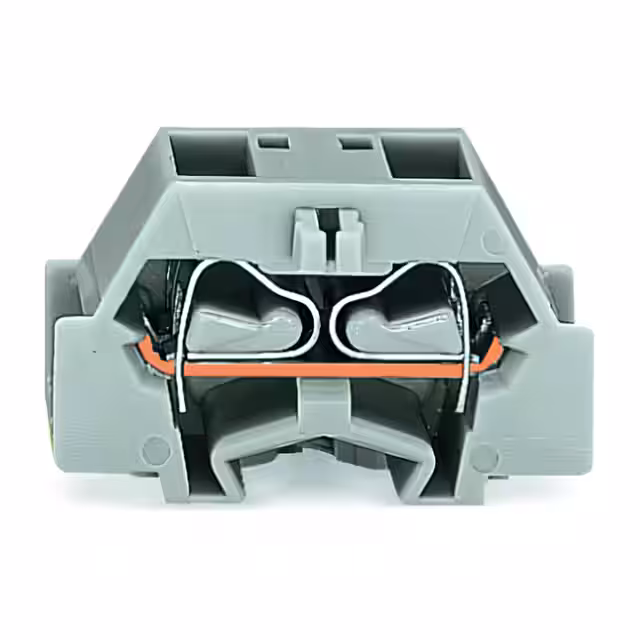

261-333

Manufacturer :

WAGO

Product Category :

Specialized

Series :

-

Contamination level :

3

Connectable conductor cross section multi-wired :

0.08 - 2.5

Connection :

Pull spring

Inflammability class of insulation material according to with UL94 :

V0

ECCN (US) :

EAR99

Voltage - IEC :

500 V

Rated current In :

24

Cross section (inflexible) (min.) :

0.08mm²

Number of Circuits :

1

Wire Gauge or Range - AWG :

14-28 AWG

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Length :

28

Cross section (flexible) (max.) :

2.50mm²

Nominal voltage :

500V

Stripping length (max.) :

9mm

Dim :

(W x H) 10 mm x 18 mm

Clamp width :

10mm

Height :

18mm

Pins per row :

4

Manufacturer part # :

261-333

Configuration :

L

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Cross section (flexible) (min.) :

0.08mm²

Termination Style :

Push In, Spring

Number of Positions :

4

Features :

+ sleeve

Package :

Box

Manufacturer :

Wago

HTS :

8536.90.40.00

Content :

200pc(s)

AWG (min.) :

28

Current - IEC :

24 A

Transparent :

No

Terminal - Width :

10.0mm

Stripping Length :

8mm ~ 9mm

Width :

10mm

AWG max. :

14

Product Status :

Active

Approvals :

CSA, cURus

RoHS :

yes

Housing Color :

Gray

PPAP :

No

Depth :

18.1

Min. stripping length :

8mm

No. of rows :

1

Cross section (inflexible) (max.) :

2.50mm²

Automotive :

No

Color :

Light Gray

Height (Max) :

0.713 (18.11mm)

Operating Temperature :

-

Industrial packaging :

yes

Mounting Type :

Flange, Snap-In

Nominal current - rounded value :

24A

Number of Levels :

1

Material Flammability Rating :

UL94 V-0

Connectable conductor cross section solid-core :

0.08 - 2.5

Type :

Standard Block

Nominal current :

24A

Wire Gauge or Range - mm² :

0.08-2.5mm²

EU RoHS :

Compliant
