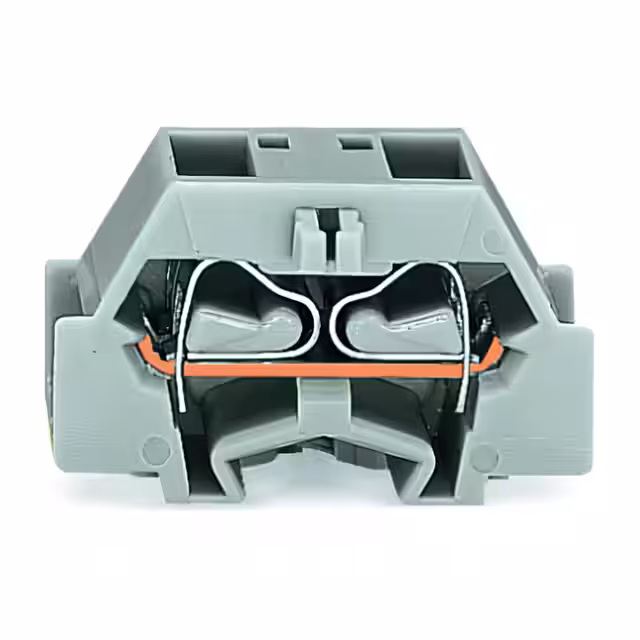

261-344

Manufacturer :

WAGO

Product Category :

Specialized

Nominal current :

24A

AWG (min.) :

28

Automotive :

No

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Number of Circuits :

1

Series :

-

Stripping length (max.) :

9mm

Current - IEC :

24 A

RoHS :

yes

HTS :

8536.90.40.00

Wire Gauge or Range - mm² :

0.08-2.5mm²

AWG max. :

14

Rated current In :

24

Cross section (inflexible) (min.) :

0.08mm²

Dim :

(W x H) 10 mm x 18 mm

Width :

10mm

Pins per row :

4

Package :

Box

Transparent :

No

Wire Gauge or Range - AWG :

14-28 AWG

Content :

200pc(s)

Cross section (inflexible) (max.) :

2.50mm²

Height (Max) :

0.713 (18.11mm)

Approvals :

CSA, cURus

ECCN (US) :

EAR99

Material Flammability Rating :

UL94 V-0

Voltage - IEC :

500 V

Cross section (flexible) (max.) :

2.50mm²

Min. stripping length :

8mm

Operating Temperature :

-

Terminal - Width :

10.0mm

Mounting Type :

Flange, Snap-In

Height :

18mm

Clamp width :

10mm

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section multi-wired :

0.08 - 2.5

EU RoHS :

Compliant

Number of Levels :

1

Type :

Standard Block

Housing Color :

Blue

Features :

+ latch lock base,Complies with ATEX Ex I standards

Stripping Length :

8mm ~ 9mm

Manufacturer part # :

261-344

Product Status :

Active

Color :

Blue

Connectable conductor cross section solid-core :

0.08 - 2.5

Termination Style :

Push In, Spring

Configuration :

N

No. of rows :

1

Cross section (flexible) (min.) :

0.08mm²

Industrial packaging :

yes

Length :

28

PPAP :

No

Nominal voltage :

500V

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Depth :

18.1

Connection :

Pull spring

Contamination level :

3

Nominal current - rounded value :

24A

Number of Positions :

4

Manufacturer :

Wago
