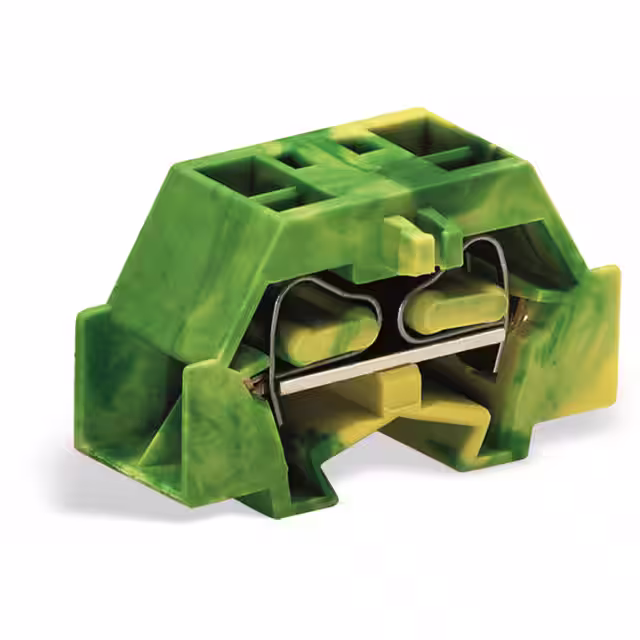

261-357

Manufacturer :

WAGO

Product Category :

Specialized

Inflammability class of insulation material according to with UL94 :

V0

Series :

-

Wire Gauge or Range - AWG :

14-28 AWG

Features :

-

Mounting Type :

Flange, Snap-In

RoHS :

yes

Length :

28

Manufacturer :

Wago

Connectable conductor cross section multi-wired :

0.08 - 2.5

Package :

Box

Approvals :

CSA, cURus

Wire Gauge or Range - mm² :

0.08-2.5mm²

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Product Status :

Active

Termination Style :

Push In, Spring

Number of Levels :

1

Number of Circuits :

1

Height :

28.1

Rated current In :

24

Housing Color :

Green, Yellow

Operating Temperature :

-

Number of Positions :

4

Stripping Length :

8mm ~ 9mm

Transparent :

No

Type :

Standard Block

Material Flammability Rating :

UL94 V-0

Height (Max) :

0.713 (18.11mm)

Terminal - Width :

10.0mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Width :

10

Depth :

18.1

Color :

Green, Yellow

Connectable conductor cross section solid-core :

0.08 - 2.5
