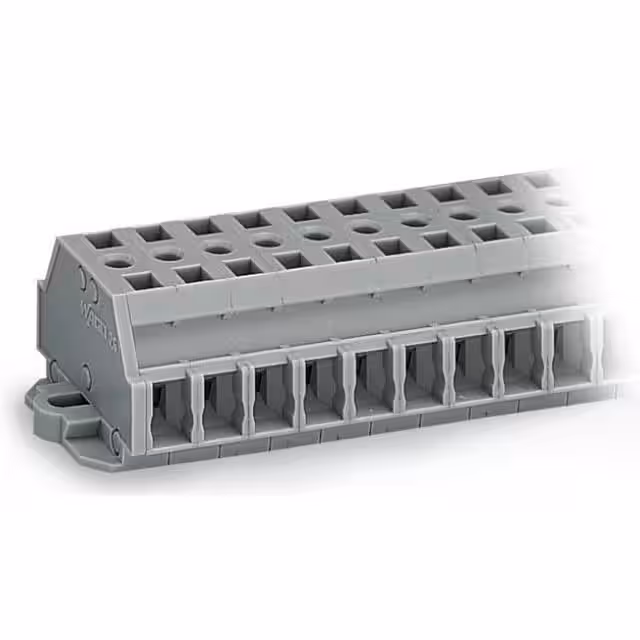

261-429

Manufacturer :

WAGO

Product Category :

Specialized

Stripping Length :

8mm ~ 9mm

Current - IEC :

24 A

Content :

50pc(s)

Weight :

23.5g

Length :

28

Stripping length (max.) :

9mm

Connectable conductor cross section multi-wired :

0.08 - 2.5

Nominal voltage :

500V

Connectable conductor cross section solid-core :

0.08 - 2.5

PPAP :

No

Operating Temperature :

-

Number of Rows :

9

Rated current In :

24

AWG max. :

14

Cross section (inflexible) (max.) :

2.50mm²

Transparent :

No

Number of Poles :

9

Connection :

Pull spring

Cross section (inflexible) (min.) :

0.08mm²

Features :

+ sleeve

Terminal - Width :

67.0mm

Termination Style :

Push In, Spring

Wire Gauge or Range - AWG :

14-28 AWG

Housing Color :

Gray

Dim :

(W x H) 67.60 mm x 18 mm

AWG (min.) :

28

EU RoHS :

Compliant

Manufacturer part # :

261-429

Number of Levels :

1

Depth :

18.1

Current Rating :

24 A

Number of Pins :

18

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Cross section (flexible) (min.) :

0.08mm²

Flammability Rating :

UL94 V-0

Height :

18mm

No. of rows :

9

Pins per row :

2

Mounting Type :

Surface Mount

Min. stripping length :

8mm

Package :

Box

Series :

-

Clamp width :

6mm

Manufacturer :

Wago

Automotive :

No

Wire Gauge or Range - mm² :

0.08-2.5mm²

Nominal current :

24A

RoHS :

yes

Material Flammability Rating :

UL94 V-0

Industrial packaging :

yes

Voltage - IEC :

500 V

Product Status :

Active

Inflammability class of insulation material according to with UL94 :

V0

Type :

261-429

Configuration :

L

Number of Positions :

18

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Width :

67.60mm

Height (Max) :

0.713 (18.11mm)

Color :

Gray

Nominal current - rounded value :

24A

Connection Type :

Spring Clamp

Cross section (flexible) (max.) :

2.50mm²

ECCN (US) :

EAR99
