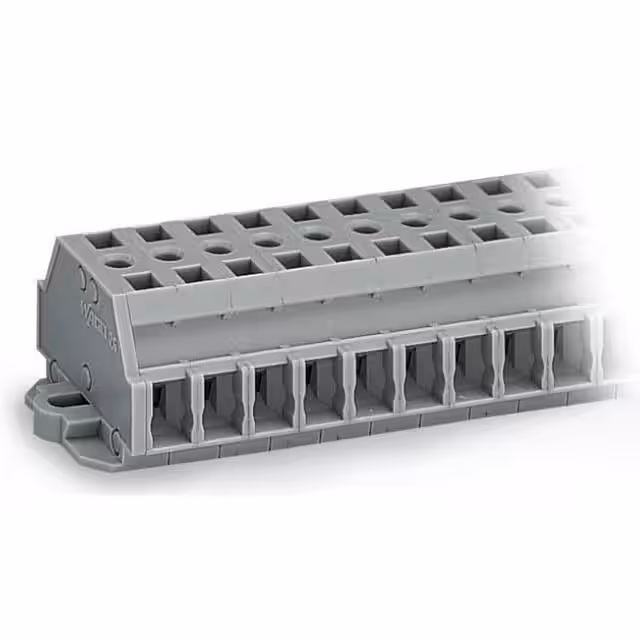

261-432

Manufacturer :

WAGO

Product Category :

Specialized

Clamp width :

6mm

Cross section (inflexible) (min.) :

0.08mm²

Connection :

Pull spring

Series :

-

Operating Temperature :

-

Nominal current :

24A

Voltage - IEC :

500 V

Package :

Box

AWG max. :

14

Height (Max) :

0.713 (18.11mm)

Cross section (flexible) (max.) :

2.50mm²

Stripping Length :

8mm ~ 9mm

Cross section (inflexible) (max.) :

2.50mm²

Number of Poles :

12

PPAP :

No

Current - IEC :

24 A

Weight :

31g

RoHS :

yes

Cross section (flexible) (min.) :

0.08mm²

ECCN (US) :

EAR99

Type :

261-432

Housing Color :

Gray

Automotive :

No

Wire Gauge or Range - AWG :

14-28 AWG

Terminal - Width :

85.0mm

EU RoHS :

Compliant

Height :

18mm

Material Flammability Rating :

UL94 V-0

Termination Style :

Push In, Spring

Nominal voltage :

500V

Manufacturer :

Wago

Content :

25pc(s)

Connection Type :

Spring Clamp

Width :

85.60mm

Number of Positions :

24

Stripping length (max.) :

9mm

Color :

Gray

Wire Gauge or Range - mm² :

0.08-2.5mm²

Mounting Type :

Surface Mount

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Min. stripping length :

8mm

Industrial packaging :

yes

Manufacturer part # :

261-432

AWG (min.) :

28

Nominal current - rounded value :

24A

Configuration :

L

Dim :

(W x H) 85.60 mm x 18 mm

Product Status :

Active

Number of Levels :

1

No. of rows :

12

Pins per row :

2

Length :

1.106 (28.09mm)

Features :

+ sleeve

HTS :

8536.90.40.00
