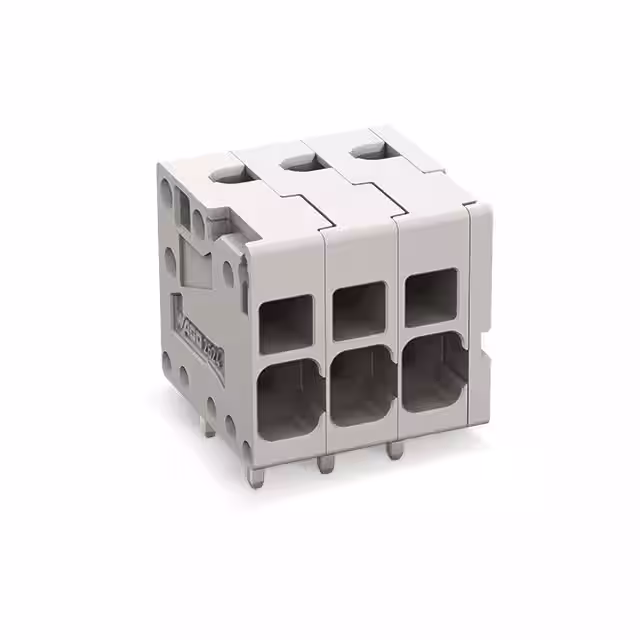

2624-1111

Manufacturer :

WAGO

Product Category :

Wire to Board

Connectable conductor cross section solid-core :

0.2 - 6

Voltage :

300 V

Wire Termination :

Screwless - Leg Spring, Push-In Spring

Positions Per Level :

11

Current :

26 A

Number of Levels :

1

HTS :

8536.90.40.00

Operating Temperature :

-60°C ~ 105°C

Connection Type :

Spring Clamp

Over voltage category :

III

Number of Poles :

11

Product Status :

Active

Automotive :

No

ECCN (US) :

EAR99

Screw Material - Plating :

-

Approvals :

CSA, cURus

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 6

RoHS :

yes

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section multi-wired :

0.2 - 0.6

Packaging type :

Carton (box)

Features :

-

Wire Gauge :

10-24 AWG

Screw Thread :

-

Clamp Material - Plating :

Steel - Nickel Plated

Temperature Range :

-76-221 °F

PPAP :

No

Color :

Gray

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Rated current In :

41

Type of fastening :

Solder

Rated surge voltage :

4

Pitch :

0.197 (5.00mm)

Mating Orientation :

Horizontal with Board

Housing Color :

Grey

Pin Length :

4 mm

Torque - Screw :

-

Housing Material :

Polyamide (PA66), Nylon 6/6

Pollution degree :

2

Height :

15.4

Manufacturer :

Wago

EU RoHS :

Compliant

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Composition :

Polyamide

Mounting Type :

PCB Mount
