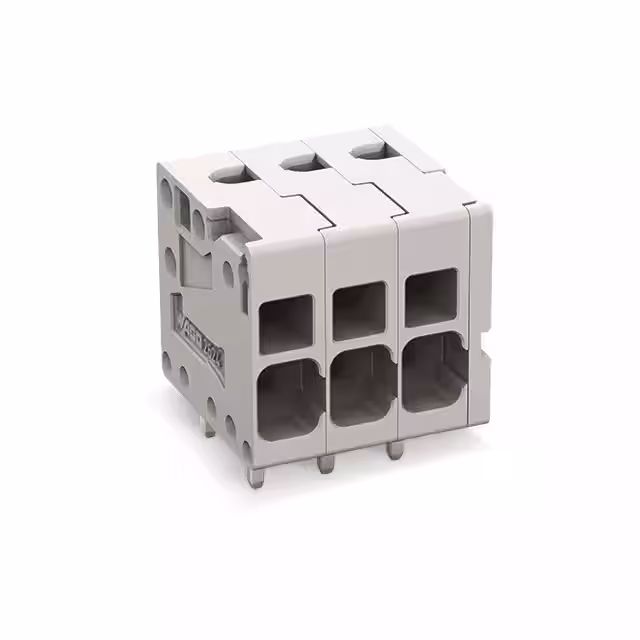

2624-1112

Manufacturer :

WAGO

Product Category :

Wire to Board

Rad Hardened :

No

Connectable conductor cross section solid-core :

0.2 - 6

Screw Thread :

-

Type of fastening :

Solder

Screw Material - Plating :

-

Pin Length :

4 MilliMeters

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 6

Color :

Gray

EU RoHS :

Compliant

Wire Gauge :

10-24 AWG

Composition :

Polyamide

Torque - Screw :

-

RoHS :

yes

Manufacturer :

Wago

Current :

26 A

Over voltage category :

III

Number of Levels :

1

Approvals :

cURus;CSA

Series :

-

Connectable conductor cross section multi-wired :

0.2 - 0.6

Mating Orientation :

Horizontal with Board

Pitch :

0.197 (5.00mm)

Height :

15.4

Automotive :

No

HTS :

8536.90.40.00

Product Status :

Active

Operating Temperature :

-60°C ~ 105°C

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Inflammability class of insulation material according to with UL94 :

V0

Package :

Box

Features :

-

Housing Color :

Grey

Packaging type :

Carton (box)

Packaging :

Box

Pollution degree :

2

Mounting Type :

PCB Mount

Connection Type :

Spring Clamp

Wire Termination :

Screwless - Leg Spring, Push-In Spring

Rated surge voltage :

4

Rated current In :

41

Number of Poles :

12

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Housing Material :

Polyamide (PA66), Nylon 6/6

Temperature Range :

-76 to 221 Degrees F

Voltage :

300 V

Positions Per Level :

12

Clamp Material - Plating :

Steel - Nickel Plated

PPAP :

No

ECCN (US) :

EAR99
