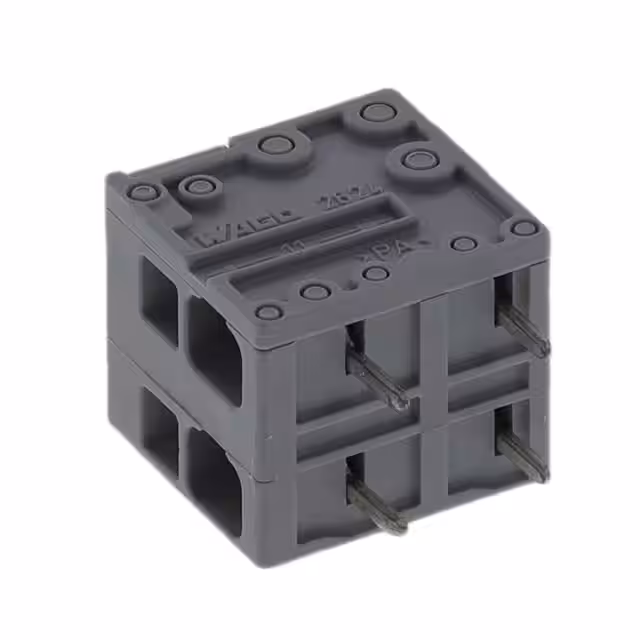

2624-1302

Manufacturer :

WAGO

Product Category :

Wire to Board

Wire Gauge :

10-24 AWG

Automotive :

No

Package :

Box

Screw Material - Plating :

-

Color :

Gray

Pitch :

0.295 (7.50mm)

Pin Length :

4 MilliMeters

Housing Material :

Polyamide (PA66), Nylon 6/6

Screw Thread :

-

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Number of Levels :

1

Temperature Range :

-76 to 221 Degrees F

Mating Orientation :

Horizontal with Board

Housing Color :

Grey

Number of Poles :

2

EU RoHS :

Compliant

Features :

-

Manufacturer :

Wago

Operating Temperature :

-60°C ~ 105°C

PPAP :

No

Connection Type :

Spring Clamp

ECCN (US) :

EAR99

Clamp Material - Plating :

Steel - Nickel Plated

HTS :

8536.90.40.00

Series :

-

Wire Termination :

Screwless - Leg Spring, Push-In Spring

Composition :

Polyamide

Current :

26 A

Voltage :

300 V

Positions Per Level :

2

RoHS :

yes

Torque - Screw :

-

Product Status :

Active

Mounting Type :

PCB Mount

Approvals :

cURus;CSA
