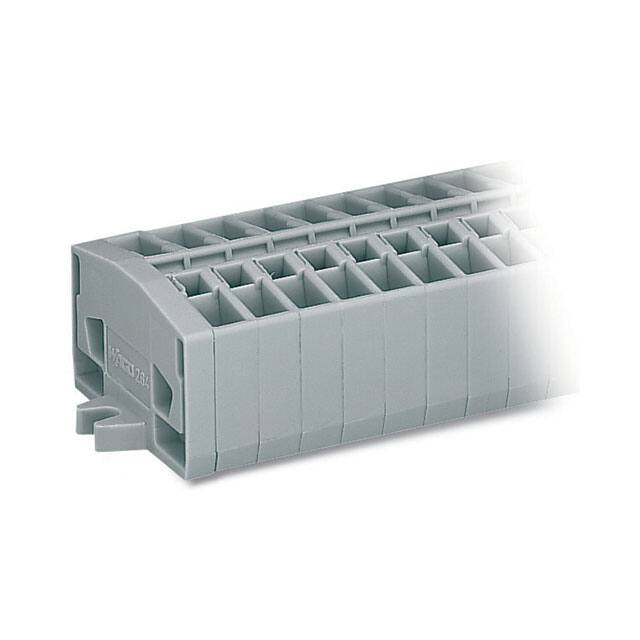

264-102

Manufacturer :

WAGO

Product Category :

Specialized

Current Rating (Max) :

24(A)

Product Weight (g) :

9.5

Type :

Terminal Strip

Packaging :

Box

Nominal current - rounded value :

24A

Operating Temperature :

-

Mounting Type :

Surface Mount

Cross section (inflexible) (min.) :

0.08mm²

Length :

1.260 (32.00mm)

RoHS :

yes

Color :

Gray

HTS :

8536.90.40.00

Stripping Length :

8mm ~ 9mm

Rad Hardened :

No

Contact Material :

ALUMINUM/COPPER

AWG (min.) :

28

Series :

-

Number of Levels :

1

Industrial packaging :

yes

Number of Circuits :

2

Gender :

F

Operating Voltage (Max) :

800V

Cross section (inflexible) (max.) :

2.50mm²

Height (Max) :

0.870 (22.10mm)

No. of rows :

2

Wire Gauge :

12-28(AWG)

Current - IEC :

24 A

Approvals :

CSA, UR

Cross section (flexible) (min.) :

0.08mm²

Configuration :

L

ECCN (US) :

EAR99

AWG max. :

14

Connection :

Pull spring

Width :

28mm

Cross section (flexible) (max.) :

2.50mm²

Min. stripping length :

8mm

PPAP :

No

Number of Contacts :

2

Pins per row :

2

Manufacturer :

Wago

Maximum Voltage Rating :

800V

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Content :

100pc(s)

Nominal voltage :

800V

Features :

+ sleeve

Nominal current :

24A

Dim :

(W x H) 28 mm x 22.10 mm

Manufacturer part # :

264-102

Automotive :

No

Maximum Current Rating (A) :

24

Package :

Box

Clamp width :

6mm

Number of Poles :

2

Termination Style :

Push In, Spring

Wire Gauge or Range - mm² :

0.08-2.5mm²

Contamination level :

3

Connection Type :

Spring Clamp

Stripping length (max.) :

9mm

EU RoHS :

Compliant

Height :

22.10mm

Terminal - Width :

28.0mm

Product Status :

Active

Wire Gauge or Range - AWG :

12-28 AWG

Housing Color :

Gray

Voltage - IEC :

800 V

Material Flammability Rating :

UL94 V-0

Number of Positions :

4

Body Orientation :

RIGHT ANGLE
