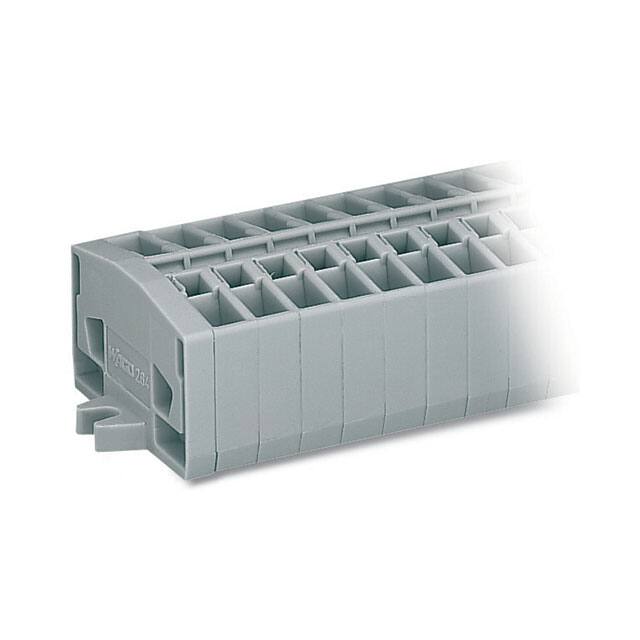

264-110

Manufacturer :

WAGO

Product Category :

Specialized

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Terminal - Width :

76.0mm

Color :

Gray

Mounting Type :

Surface Mount

Cross section (inflexible) (max.) :

2.50mm²

Operating Temperature :

-

Number of Levels :

1

Cross section (flexible) (max.) :

2.50mm²

Content :

50pc(s)

Cross section (flexible) (min.) :

0.08mm²

Type :

WAGO GmbH and Co. KG

Configuration :

L

Cross section (inflexible) (min.) :

0.08mm²

Nominal current - rounded value :

24A

Nominal voltage :

800V

Product Status :

Active

Stripping length (max.) :

9mm

Depth :

22.1

ECCN (US) :

EAR99

Current - IEC :

24 A

Industrial packaging :

yes

Transparent :

No

Connection :

Pull spring

Manufacturer :

Wago

Width :

76mm

No. of rows :

10

HTS :

8536.90.40.00

Wire Gauge or Range - AWG :

12-28 AWG

PPAP :

No

AWG (min.) :

28

Min. stripping length :

8mm

Material Flammability Rating :

UL94 V-0

Termination Style :

Push In, Spring

Manufacturer part # :

264-110

Connectable conductor cross section solid-core :

0.08 - 2.5

Number of Positions :

20

Contamination level :

3

Nominal current :

24A

Inflammability class of insulation material according to with UL94 :

V0

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Stripping Length :

8mm ~ 9mm

Package :

Box

Approvals :

CSA, UR

Voltage - IEC :

800 V

Clamp width :

6mm

RoHS :

yes

AWG max. :

14

Pins per row :

2

Height :

22.10mm

Features :

+ sleeve

Connection Type :

Spring Clamp

Rated current In :

24

Series :

-

Number of Poles :

10

Connectable conductor cross section multi-wired :

0.08 - 2.5

Dim :

(W x H) 76 mm x 22.10 mm

Automotive :

No

Length :

32

EU RoHS :

Compliant

Wire Gauge or Range - mm² :

0.08-2.5mm²

Housing Color :

Gray

Height (Max) :

0.870 (22.10mm)
