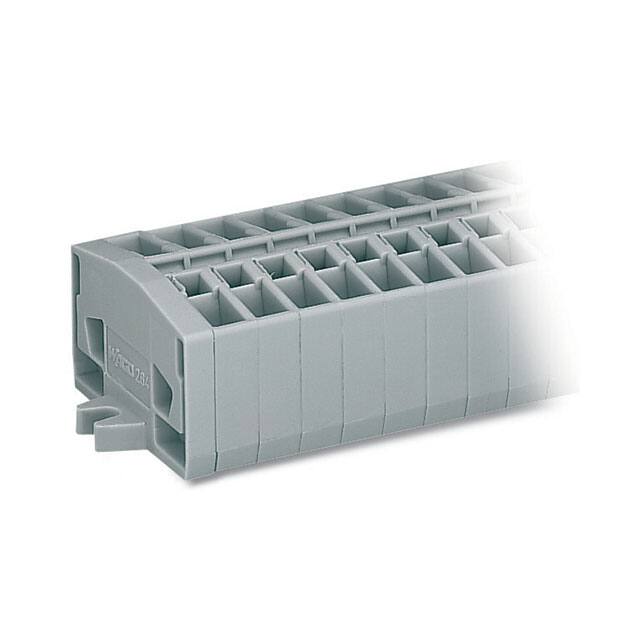

264-107

Manufacturer :

WAGO

Product Category :

Specialized

Material Flammability Rating :

UL94 V-0

Cross section (inflexible) (max.) :

2.50mm²

Series :

-

Configuration :

L

Color :

Gray

No. of rows :

7

Package :

Box

Wire Gauge or Range - AWG :

12-28 AWG

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Poles :

7

Cross section (inflexible) (min.) :

0.08mm²

Terminal - Width :

58.0mm

Type :

264-107

EU RoHS :

Compliant

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Stripping length (max.) :

9mm

Height (Max) :

0.870 (22.10mm)

Dim :

(W x H) 58 mm x 22.10 mm

Length :

32

Manufacturer :

Wago

Connection :

Pull spring

Connectable conductor cross section multi-wired :

0.08 - 2.5

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Depth :

22.1

Width :

58mm

Housing Color :

Gray

AWG (min.) :

28

Cross section (flexible) (max.) :

2.50mm²

Cross section (flexible) (min.) :

0.08mm²

Connection Type :

Spring Clamp

Connectable conductor cross section solid-core :

0.08 - 2.5

Wire Gauge or Range - mm² :

0.08-2.5mm²

Mounting Type :

Surface Mount

Termination Style :

Push In, Spring

Rated current In :

24

HTS :

8536.90.40.00

Inflammability class of insulation material according to with UL94 :

V0

ECCN (US) :

EAR99

Automotive :

No

Nominal current - rounded value :

24A

Voltage - IEC :

800 V

Height :

22.10mm

Content :

100pc(s)

Transparent :

No

Industrial packaging :

yes

Number of Positions :

14

PPAP :

No

Manufacturer part # :

264-107

Pins per row :

2

Stripping Length :

8mm ~ 9mm

AWG max. :

14

Min. stripping length :

8mm

Product Status :

Active

Number of Levels :

1

Nominal voltage :

800V

RoHS :

yes

Approvals :

CSA, UR

Nominal current :

24A

Contamination level :

3

Features :

+ sleeve

Operating Temperature :

-

Current - IEC :

24 A

Clamp width :

6mm
