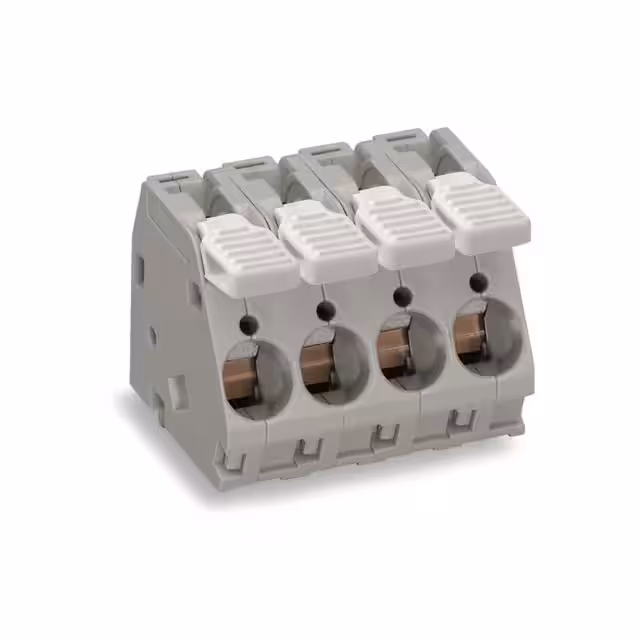

2716-104

Manufacturer :

WAGO

Product Category :

Wire to Board

Current :

55 A

Over voltage category :

III

Package :

Box

Torque - Screw :

-

Temperature Range :

-76 to 221 Degrees F

Type of fastening :

Solder

Rated current In :

76

Rated surge voltage :

4

Clamp Material - Plating :

Steel - Nickel Plated

Connectable conductor cross section fine-strand without cable end sleeve :

1.5 - 16

Wire Gauge :

6-16 AWG

Connectable conductor cross section fine-strand with cable end sleeve :

1.5 - 10

Number of Contacts :

4

Connectable conductor cross section multi-wired :

1.5 - 16

Rated Current :

76A

Gender :

FEMALE

Screw Material - Plating :

-

Series :

-

Housing Material :

Polyamide (PA66), Nylon 6/6

Product Status :

Active

Pollution degree :

2

Mating Orientation :

Horizontal with Board

Number of Poles :

4

Composition :

Polyamide

Number of Rows :

1

Features :

Lever Actuated

RoHS :

yes

Rated Voltage :

320V

Voltage :

300 V

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Mounting Type :

PCB Mount

Wire Termination :

Screwless - Leg Spring, Push-In Spring

Approvals :

cURus;CSA

Connectable conductor cross section solid-core :

1.5 - 16

Color :

Gray

Screw Thread :

-

Manufacturer :

Wago

Positions Per Level :

4

Connection Type :

Spring Clamp

Pitch :

10mm

Height :

28.8

Pin Length :

4.5 MilliMeters

Inflammability class of insulation material according to with UL94 :

V0

Number of Levels :

1

Packaging type :

Other

Operating Temperature :

-60°C ~ 105°C
