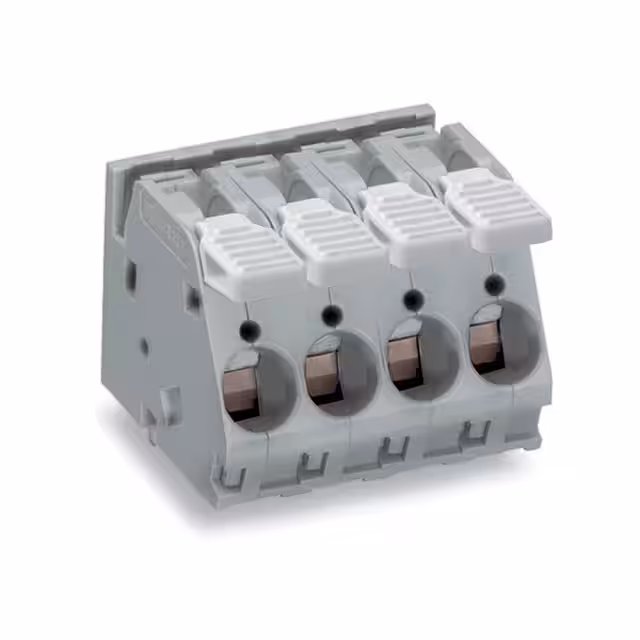

2716-154

Manufacturer :

WAGO

Product Category :

Wire to Board

Product Status :

Active

Connectable conductor cross section multi-wired :

1.5 - 16

Manufacturer :

Wago

Connectable conductor cross section solid-core :

1.5 - 16

Clamp Material - Plating :

Steel - Nickel Plated

Type of fastening :

Solder

Over voltage category :

III

Wire Gauge :

6-16 AWG

Color :

Gray

Current :

55 A

Torque - Screw :

-

Screw Material - Plating :

-

Series :

-

Packaging type :

Other

Pitch :

0.394 (10.00mm)

Connectable conductor cross section fine-strand with cable end sleeve :

1.5 - 10

Pin Length :

4.5 MilliMeters

Housing Material :

Polyamide (PA66), Nylon 6/6

Inflammability class of insulation material according to with UL94 :

V0

Positions Per Level :

4

Operating Temperature :

-60°C ~ 105°C

Approvals :

cURus;CSA

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Temperature Range :

-76 to 221 Degrees F

Voltage :

300 V

Features :

Lever Actuated

Screw Thread :

-

Rated current In :

76

Mating Orientation :

Horizontal with Board

Composition :

Polyamide

Connection Type :

Spring Clamp

Number of Levels :

1

RoHS :

yes

Package :

Box

Mounting Type :

PCB Mount

Rated surge voltage :

4

Pollution degree :

2

Connectable conductor cross section fine-strand without cable end sleeve :

1.5 - 16

Number of Poles :

4

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Height :

28.8
