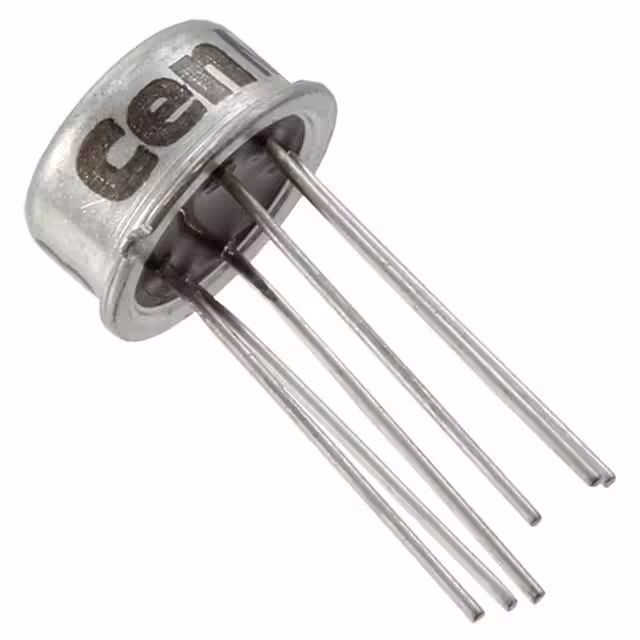

2N3811A

Manufacturer :

Central Semiconductor

Product Category :

Transistors - Bipolar (BJT) - Arrays

Number of Terminations :

6

Terminal Form :

Wire

Current - Collector Cutoff (Max) :

10nA ICBO

DC Current Gain (hFE) (Min) @ Ic, Vce :

300 @ 1mA 5V

Voltage - Collector Emitter Breakdown (Max) :

60V

RoHS Status :

Non-RoHS Compliant

JESD-609 Code :

e0

Transition Frequency :

100MHz

Current - Collector (Ic) (Max) :

50mA

Mounting Type :

Through Hole

Transistor Type :

2 PNP (Dual)

ECCN Code :

EAR99

Terminal Finish :

Tin/Lead (Sn/Pb)

JESD-30 Code :

O-MBCY-W6

Operating Temperature :

-65°C~200°C TJ

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Power - Max :

600mW

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Surface Mount :

No

Reach Compliance Code :

not_compliant

Vce Saturation (Max) @ Ib, Ic :

250mV @ 1mA, 100μA

Package / Case :

TO-78-6 Metal Can

Transistor Element Material :

SILICON

Qualification Status :

Not Qualified

Number of Elements :

2

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Additional Feature :

LOW NOISE

Published :

2017

Frequency - Transition :

100MHz

HTS Code :

8541.21.00.95

Pbfree Code :

No

Terminal Position :

BOTTOM

Configuration :

SEPARATE, 2 ELEMENTS

Packaging :

Bulk

Polarity/Channel Type :

PNP
