2N4015

Manufacturer :

Central Semiconductor

Product Category :

Transistors - Bipolar (BJT) - Arrays

Transistor Element Material :

SILICON

ECCN Code :

EAR99

Terminal Form :

Wire

JESD-609 Code :

e0

Packaging :

Bulk

Number of Terminations :

6

Number of Elements :

2

Transistor Type :

2 PNP (Dual)

Pbfree Code :

No

Power - Max :

600mW

JESD-30 Code :

O-MBCY-W6

HTS Code :

8541.21.00.75

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Transistor Application :

SWITCHING

Reach Compliance Code :

not_compliant

Voltage - Collector Emitter Breakdown (Max) :

60V

Published :

2017

Surface Mount :

No

Mounting Type :

Through Hole

Frequency - Transition :

200MHz

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Finish :

Tin/Lead (Sn/Pb)

RoHS Status :

Non-RoHS Compliant

Configuration :

SEPARATE, 2 ELEMENTS

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

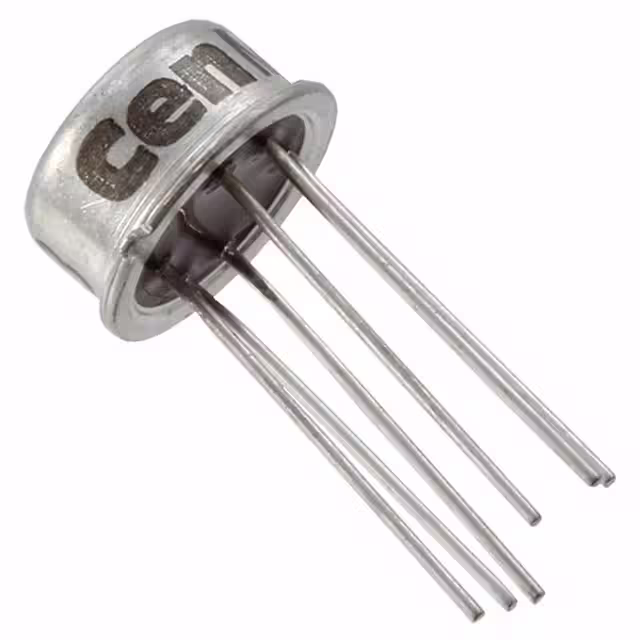

Package / Case :

TO-78-6 Metal Can

Qualification Status :

Not Qualified

Polarity/Channel Type :

PNP

Current - Collector (Ic) (Max) :

300mA

DC Current Gain (hFE) (Min) @ Ic, Vce :

135 @ 1mA 5V

Terminal Position :

BOTTOM

Transition Frequency :

200MHz
