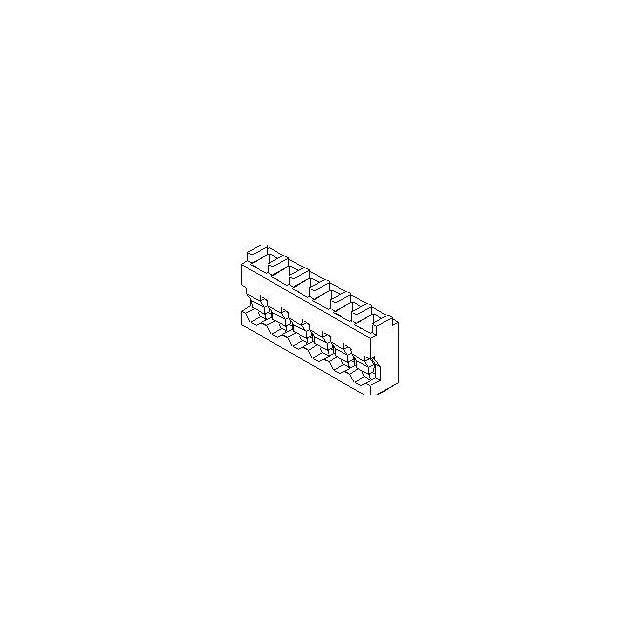

39-01-0059

Manufacturer :

Molex

Product Category :

Unclassified

Product Status :

Active

Number of Positions :

5

Body Depth :

0.224 inch

MIL Conformance :

No

RoHS :

Compliant

Contact Style :

SQ PIN-SKT

UL Flammability Code :

94V-0

Additional Feature :

COMPATIBLE CONTACTS: 39-00-0029; 39-00-0030, SOLDERED DIRECTLY TO THE BOARD

Contact Material :

NOT SPECIFIED

IEC Conformance :

No

Contact Gender :

Male

DIN Conformance :

No

Contact Resistance :

5 mΩ

Mount :

CABLE

Mounting Option 2 :

LOCKING

Gender :

Male

Series :

*

Filter Feature :

No

Withdrawl Force-Min :

1.0008 N

Housing Material :

Nylon

Number of Contacts :

5

Reliability :

COMMERCIAL

Insulation Resistance :

1000000000 Ω

ECCN Code :

EAR99

Body/Shell Style :

Receptacle

Insertion Force-Max :

5.7824 N

Mixed Contacts :

No

Mating Contact Pitch :

0.079 inch

Termination :

Crimp

HTS Code :

8536.69.40.40

Package :

Bulk

Mounting Option 1 :

GUIDE SLOT

Terminal Pitch :

2 mm

Termination Type :

Solder

Body Breadth :

0.108 inch

Reach Compliance Code :

Compliant

Polarization Key :

POLARIZED KEY

Option :

GENERAL PURPOSE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mounting Type :

BOARD

Mounting Style :

Straight

Dielectric Withstanding Voltage :

500VAC V

Contact Pattern :

RECTANGULAR

Pitch :

2 mm

Rated Current (Signal) :

2 A

Connector Type :

BOARD CONNECTOR

Reference Standard :

UL

Number of Rows :

1

Total Number of Contacts :

5
