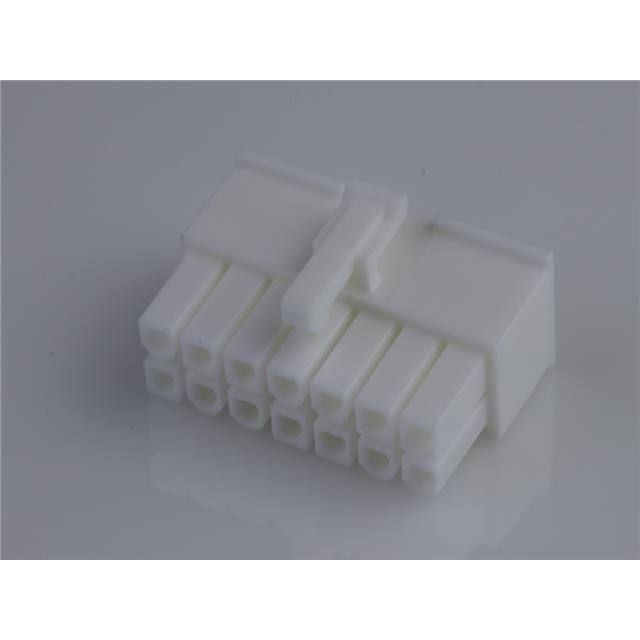

39-01-2145

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Length :

30.6mm

Application :

Power

Wire Gauge :

16-24(AWG)

Type :

Housing

Width :

15.1mm

Voltage Rating Max :

600VDC/600VAC

Housing Color :

Ivory

Base/Housing Material :

Nylon 66

Number of Contacts :

14(POS)

Number of Contact Rows :

2

Operating Temp Range :

-40C to 105C

RoHS Status :

RoHS Compliant

Packaging :

Bag-packed

Panel Mount :

No

Housing Material :

Nylon 6/6

Body Orientation :

Straight

Series :

Mini-Fit Jr

Gender :

Male

Current Rating (Max) :

13/Contact(A)

Mounting Type :

Cable Mount

Number of Rows :

2

Operating Temperature :

-40 to 105 °C

Product Length (mm) :

30.6(mm)

Row Spacing :

0.165"(4.20mm)

Pitch (mm) :

4.2(mm)

Product Depth (mm) :

10.7(mm)

Circuit Size :

14

Product Height (mm) :

19.6(mm)

Pitch :

0.165" 4.20mm

Color :

Brown

For Use With :

Molex Mini-Fit Jr. 5556 and Mini-Fit Plus HCS 45750 Series Socket Contacts

Product Length :

30.6 mm
