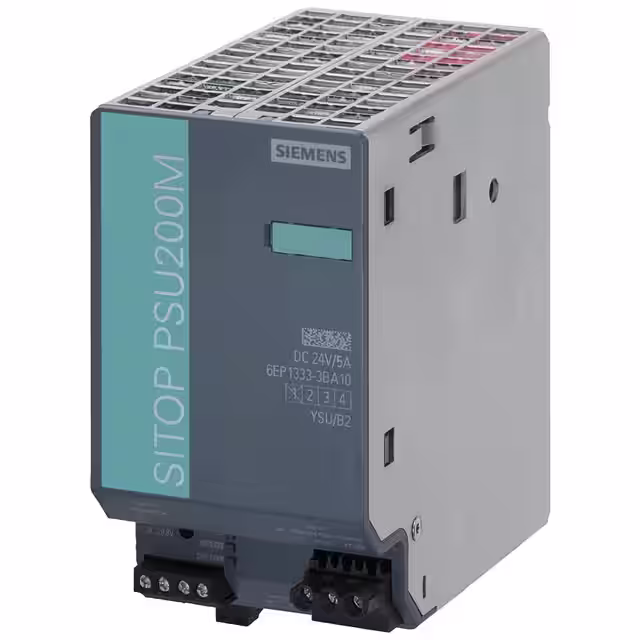

6EP13333BA10

Manufacturer :

Siemens

Product Category :

Efficiency :

88%

Connection :

Screw Terminal

Degree of protection (IP) :

IP20

Rail mounting possible :

yes

Output Current :

5A

Max. output current :

5A

Weight :

1.2kg

Modular version :

yes

Power :

120W

Series :

SITOP PSU200M

Output voltage (max.) :

28.8V DC

Mounting Type :

DIN Rail Mount

Input Type :

AC

Output Voltage :

24V dc

Voltage - Output 4 :

-

Content :

1pc(s)

Output voltage (min.) :

24V dc

Minimum Load Required :

-

Number of Outputs :

1

Input Voltage :

85 → 264V ac

Width :

70mm

Product Status :

Active

Voltage - Output 2 :

-

Power Rating :

120W

Current - Output (Max) :

5A

Max. temperature :

+70°C

No. of outputs :

1x

Voltage - Output 5 :

-

Operating Temperature :

-25°C ~ 70°C

Voltage - Output 1 :

24V

Power (Watts) :

120W

Voltage type of supply voltage :

AC

Approval Agency :

CB, cCSAus, CE, CSA, cUL, cULus, UL

Standard Number :

60950-1; UL 508

Voltage - Output 6 :

-

Connections :

Screw Terminals

Type :

SITOP Modular 24 V/5 A

Voltage - Output 3 :

-

Suitable for safety functions :

No

Manufacturer part # :

6EP1333-3BA10

Package :

Bulk

Min. input voltage :

120V AC

Min. temperature :

-25°C

Output rating :

120W

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Output current (max.) - rounded :

5A

Load Regulation :

0.1%

Type of electric connection :

Screw connection

Height :

125mm

Features :

Adjustable Output, IP20

Dim :

(W x H x D) 70 x 125 x 125 mm

Output voltage (nominal) :

24V dc

Output current (details) :

5A

Size / Dimension :

4.76 L x 2.76 W x 4.92 H (121.0mm x 70.0mm x 125.0mm)

Depth :

125mm

Input voltage (max.) :

500V ac
