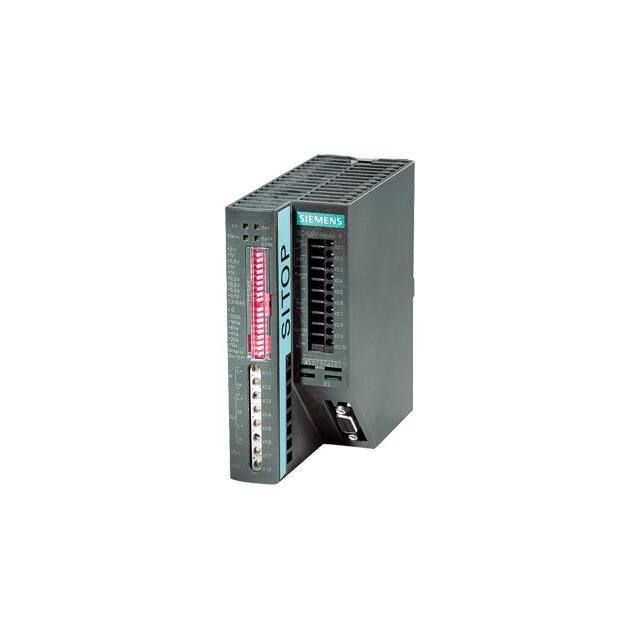

6EP19312EC42

Manufacturer :

Siemens

Product Category :

Voltage type :

DC

USV- technology :

Offline

Min. input voltage :

22V DC

Standard Number :

508

RoHS :

Compliant

Size / Dimension :

4.92 L x 4.02 W x 4.92 H (125.0mm x 102.0mm x 125.0mm)

Max Operating Temperature :

60 °C

Package :

Bulk

Input Type :

DC

Power (Watts) :

360W

Voltage - Output 6 :

-

Type :

SITOP DC-UPS-MODUL 15A DC 24V USB

Current - Output (Max) :

15A

Height :

125mm

Power Rating :

360 W

Minimum Load Required :

-

Connections :

Screw connector

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Voltage - Output 2 :

-

Product Status :

Active

Dim :

(W x H x D) 50 x 125 x 125 mm

Efficiency :

96.2%

Number of Outputs :

1

Mount :

DIN Rail

Min Operating Temperature :

0 °C

Voltage - Output 4 :

-

Features :

Adjustable Output, IP20

Output Current :

15 A

Depth :

125mm

Operating Temperature :

-25°C ~ 60°C

SNMP :

No

Weight :

0.45

Length :

125 mm

Interfaces :

1x USB

Width :

50mm

Series :

6EP1

Voltage - Output 5 :

-

Voltage - Output 1 :

24V

Voltage - Output 3 :

-

Approval Agency :

CE, CSA, cULus, UL

Input voltage (max.) :

29V DC

Bridging time, max load :

45s

Output current (details) :

0 - 15A

Output voltage (max.) :

24V dc

Output Voltage :

28.5 V

Output effective power :

360

Current Rating :

15 A

Suitable for network-management :

No
