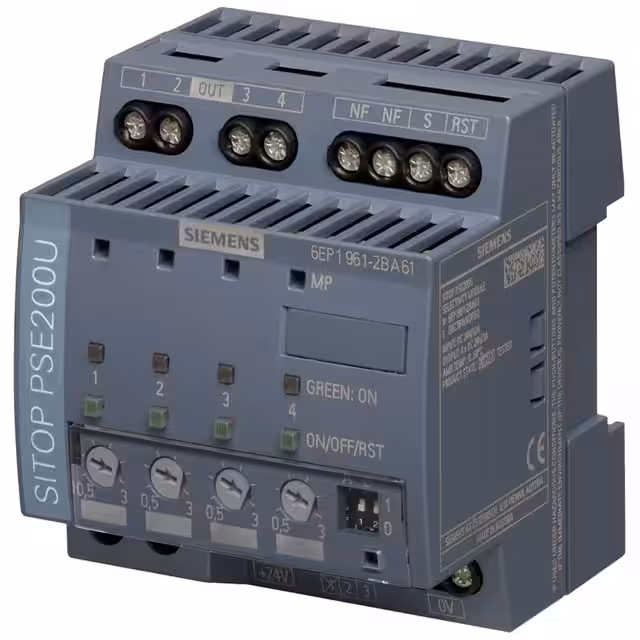

6EP19612BA61

Manufacturer :

Siemens

Product Category :

Type of electric connection :

Screw connection

Product Category :

Modular Power Supplies

Depth :

72mm

Size / Dimension :

2.83 L x 2.83 W x 3.15 H (72.0mm x 72.0mm x 80.0mm)

Mounting Type :

DIN Rail Mount

Output Voltage :

24V dc

Operating Temperature :

-25°C ~ 60°C

Voltage - Output 2 :

24V

Input Type :

DC

Number of contacts as normally open contact :

0

Number of contacts as normally closed contact :

0

Height :

80mm

Number of Outputs :

4

Series :

6EP1961-2BA61

Voltage - Output 4 :

24V

Voltage - Output 3 :

24V

Approval Agency :

CE, cULus, EAC, UL

Minimum Load Required :

-

Package :

Box

Features :

Adjustable Output, IP20

Weight :

170g

Dim :

(L x W) 72 mm x 72 mm

Isolated :

yes

Subcategory :

AC-DC Power Supply

Power (Watts) :

-

Rated control supply voltage at DC :

22 - 30

Voltage type for actuating :

DC

Voltage - Output 6 :

-

Length :

72mm

Voltage - Output 1 :

24V

With detachable clamps :

No

Voltage - Output 5 :

-

Width :

72

Power Rating :

9W

Type :

6EP1961-2BA61

Standard Number :

60950-1; UL 508

Efficiency :

0.97

Current - Output (Max) :

3A, 3A, 3A, 3A

Number of contacts as change-over contact :

0

Applications :

Industrial, ITE (Commercial)

Brand :

Advanced Energy

Manufacturer :

Advanced Energy

Product Status :

Active

Output Current :

3A

Product Type :

Modular Power Supplies

Input Voltage Range :

22 → 30 V dc
