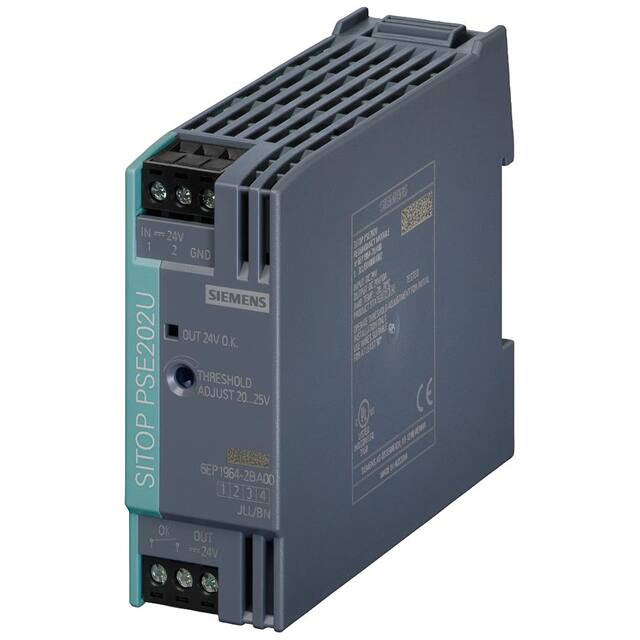

6EP19642BA00

Manufacturer :

Siemens

Product Category :

Voltage - Output 4 :

-

Features :

Adjustable Output, IP20

Output Voltage :

24V dc

Voltage - Output 1 :

24V

Output Current :

10A

Product Status :

Active

Size / Dimension :

3.94 L x 1.18 W x 3.15 H (100.0mm x 30.0mm x 80.0mm)

Approval Agency :

CE, CSA, cUL, cULus, UL

Standard Number :

60950-1; UL 508

Series :

SITOP PSE202U

Power (Watts) :

-

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Mounting Type :

DIN Rail Mount

Minimum Load Required :

-

Degree of protection (IP) :

IP20

Voltage - Output 2 :

-

Voltage - Output 6 :

-

Voltage type of supply voltage :

DC

Suitable for safety functions :

No

Type :

Redundancy Module

Current - Output (Max) :

10A

Operating Temperature :

-20°C ~ 70°C

Efficiency :

97.1%

Number of Outputs :

1

Voltage - Output 5 :

-

Height :

80mm

Voltage - Output 3 :

-

Type of electric connection :

Screw connection

Depth :

100mm

Modular version :

yes

Rail mounting possible :

yes

Package :

Bulk

Input Voltage :

24V dc

Standards Met :

CE, CSA Certified, UL

Input Type :

DC

Width :

80mm
