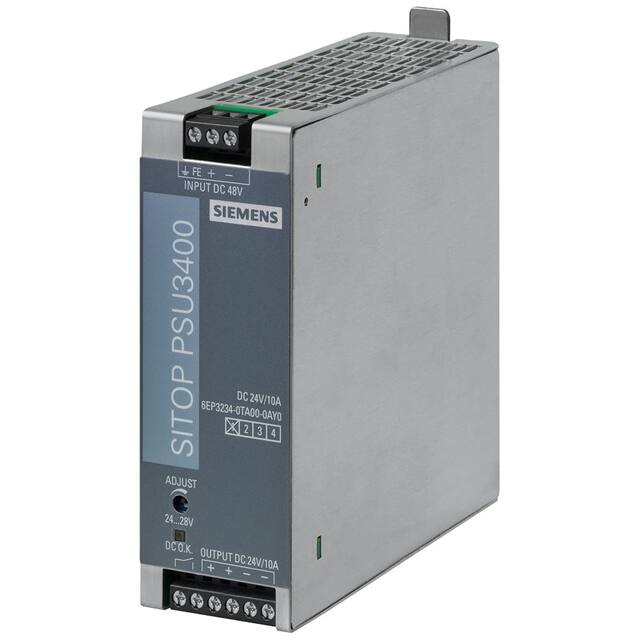

6EP32340TA000AY0

Manufacturer :

Siemens

Product Category :

Features :

Adjustable Output, IP20

Voltage - Output 3 :

-

Rail mounting possible :

yes

Mounting Type :

DIN Rail Mount

Input Voltage Range :

32 → 54 V dc

Applications :

Industrial, ITE (Commercial)

Degree of protection (IP) :

IP20

Power Rating :

256W

Power (Watts) :

-

Efficiency :

93.5%

Modular version :

yes

Minimum Load Required :

-

Voltage - Output 5 :

-

Voltage - Output 4 :

-

Input Type :

DC

Voltage - Output 2 :

-

Voltage - Output 1 :

24V

Series :

SITOP PSU3400

Type of electric connection :

Screw connection

Standards Met :

ABS, CB Approval, CE Mark, CSA C22.2 No. 107.1 File E197259, cULus-Listed, DNV GL, UL 508

Output Current :

10A

Package :

Box

Isolated :

yes

Voltage type of supply voltage :

DC

Current - Output (Max) :

10A

Output Voltage :

24V dc

Width :

120mm

Size / Dimension :

4.72 L x 1.65 W x 4.92 H (120.0mm x 42.0mm x 125.0mm)

Depth :

125mm

Length :

42mm

Number of Outputs :

1

Approval Agency :

CB, CE, cULus

Product Status :

Active

Voltage - Output 6 :

-

Height :

125

Operating Temperature :

-25°C ~ 70°C

Standard Number :

60950-1; UL 508
