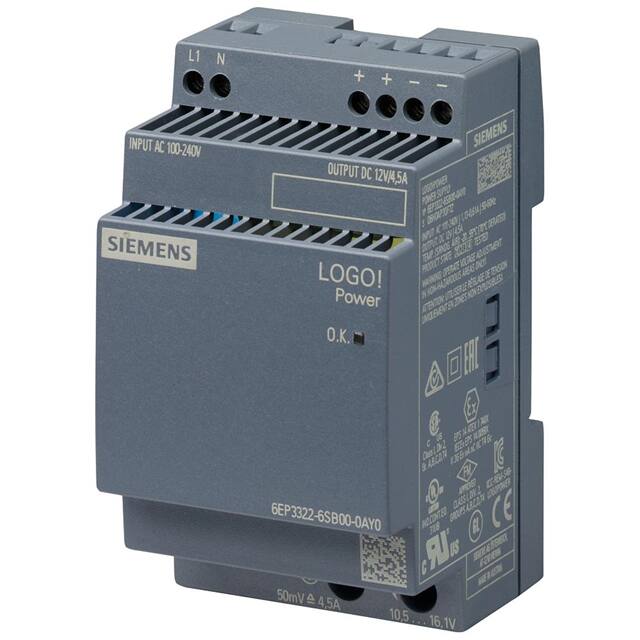

6EP33226SB000AY0

Manufacturer :

Siemens

Product Category :

Series :

LOGO!POWER

No. of outputs :

1x

Operating Temperature :

-25°C ~ 70°C (With Derating)

Dim :

(L x W x H) 53 x 54 x 90 mm

Depth :

53mm

Voltage - Output 4 :

-

Output Current :

4.5A

Product Status :

Active

Rail mounting possible :

yes

Power Rating :

54W

Max. temperature :

+70°C

Input voltage (max.) :

240V AC

Output Voltage :

12V DC

Max. operating voltage :

240V AC

Min. temperature :

-25°C

Length :

53mm

Efficiency :

87.1%

Weight :

250g

Load Regulation :

0.1%

Type of electric connection :

Screw connection

Power :

54W

Mounting Type :

DIN Rail Mount

Package :

Bulk

Power (Watts) :

54W

Manufacturer part # :

6EP3322-6SB00-0AY0

Min. input voltage :

100V AC

Output voltage (nominal) :

12V DC

Voltage - Output 5 :

-

Max. output current :

4.5A

Modular version :

yes

Output voltage (min.) :

10.5V DC

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Number of Outputs :

1

Voltage - Output 1 :

12V

Approval Agency :

CB, cCSAus, CE, CSA, cUL, cULus, UL

Voltage - Output 2 :

-

Special Features :

Flexible Deployment, Flexible Mounting, Global Use, High Energy Efficiency, Load Monitoring, Low Width, Reliable, Wide Portfolio

Standard Number :

60950-1; UL 508

Size / Dimension :

2.09 L x 2.13 W x 3.54 H (53.0mm x 54.0mm x 90.0mm)

Features :

Adjustable Output, IP20, Universal Input

Height :

90mm

Type :

6EP3322-6SB00-0AY0

Width :

54mm

Input Voltage :

230V ac

Current - Output (Max) :

4.5A

Output voltage (max.) :

16.1V DC

Voltage type of supply voltage :

AC/DC

Min. operating voltage :

100V AC

Voltage - Output 6 :

-

Connection :

Screw Terminal

Standards Met :

CB, CE Marked, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, cULus, cURus Recognised, File E151273, File E197259, FM Approval, NEC Class 2, UL 508, UL 60950

Input Type :

AC or DC

Degree of protection (IP) :

IP20

Minimum Load Required :

-

Voltage - Output 3 :

-
