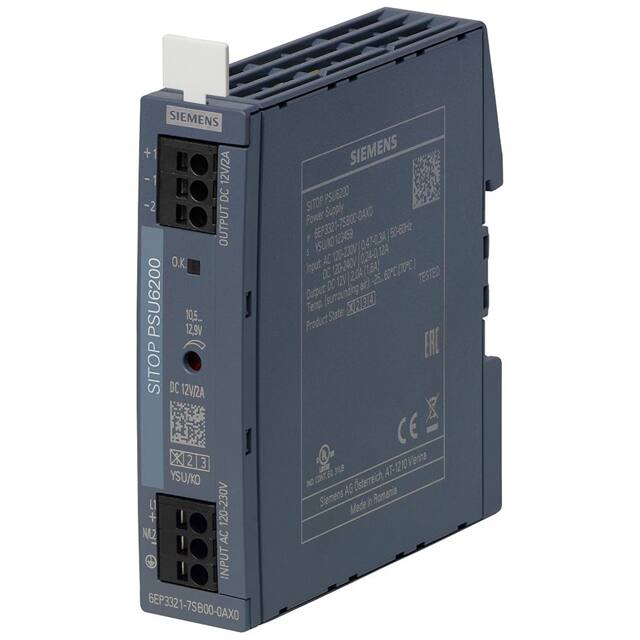

6EP33217SB000AX0

Manufacturer :

Siemens

Product Category :

Mounting Type :

DIN Rail Mount

Series :

SITOP PSU6200

Standards Met :

cCSAus (CSA C22.2 No. 60950-1, UL 60950-1), CE Certified, cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259, EN 55022 Class B, EN 61000-3-2, EN 61000-6-2

Product Status :

Active

Efficiency :

83.3%

Output voltage (min.) :

12V

Operating Temperature :

-25°C ~ 70°C (With Derating)

Standard Number :

60950-1; UL 508

Type :

Siemens Dig.Industr.

Output voltage (nominal) :

12V

Current - Output (Max) :

2A

Output voltage (max.) :

12V

Output current (max.) - rounded :

2A

Width :

25mm

Minimum Load Required :

-

Power (Watts) :

24W

Modular version :

yes

Manufacturer :

Cutler Hammer, Div of Eaton Co

Features :

Adjustable Output, IP20, Universal Input

Max. temperature :

85°C

Special Features :

LED Display

Approval Agency :

CB, cCSAus, CE, CSA, cUL, cULus, UL

Dim :

(W x H) 25 mm x 200 mm

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Content :

1pc(s)

Max. output current :

2A

Voltage - Output 6 :

-

Weight :

0.26kg

Type of electric connection :

Spring clamp connection

Voltage - Output 1 :

12V

Voltage - Output 4 :

-

Height :

200mm

Package :

Bulk

No. of outputs :

1x

Voltage - Output 2 :

-

Size / Dimension :

3.46 L x 0.98 W x 3.94 H (88.0mm x 25.0mm x 100.0mm)

Voltage - Output 5 :

-

Input voltage (max.) :

275,264

Manufacturer part # :

6EP3321-7SB00-0AX0

Max. operating temperature :

70°C

Degree of protection (IP) :

IP20

Min. input voltage :

110,85

Rail mounting possible :

yes

Depth :

88

Power :

24W

Number of Outputs :

1

Voltage - Output 3 :

-

Input Voltage :

85 → 264V ac

Output Current :

2A

Min. temperature :

-40°C

Output Voltage :

12V DC

Input Type :

AC or DC

Voltage type of supply voltage :

AC/DC

Power Rating :

24W
