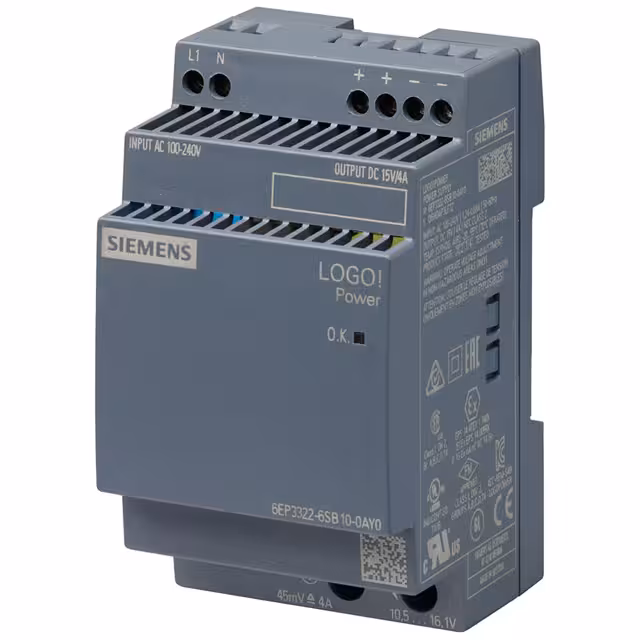

6EP33226SB100AY0

Manufacturer :

Siemens

Product Category :

Min. operating voltage :

100V AC

Dim :

(L x W x H) 53 x 54 x 90 mm

Voltage - Output 5 :

-

Operating Temperature :

-25°C ~ 70°C (With Derating)

Package :

Bulk

Connection :

Screw Terminal

Voltage - Output 2 :

-

Standard Number :

60950-1; UL 508

Voltage - Output 3 :

-

Voltage - Output 4 :

-

Min. input voltage :

100V AC

Output voltage (nominal) :

15V dc

Power (Watts) :

60W

Approval Agency :

CB, cCSAus, CE, CSA, cUL, cULus, UL

Modular version :

yes

Features :

Adjustable Output, IP20, Universal Input

Type :

6EP3322-6SB10-0AY0

Width :

54mm

Rail mounting possible :

yes

Size / Dimension :

2.09 L x 2.13 W x 3.54 H (53.0mm x 54.0mm x 90.0mm)

Product Status :

Active

Weight :

250g

Degree of protection (IP) :

IP20

Voltage type of supply voltage :

AC/DC

Input voltage (max.) :

240V AC

Max. output current :

4A

Power :

60W

Output voltage (min.) :

10.5V DC

Voltage - Output 1 :

15V

Output voltage (max.) :

16.1V DC

Number of Outputs :

1

Height :

90mm

Series :

6EP3

Manufacturer part # :

6EP3322-6SB10-0AY0

No. of outputs :

1x

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Input Type :

AC or DC

Minimum Load Required :

-

Type of electric connection :

Screw connection

Max. operating voltage :

240V AC

Depth :

53

Efficiency :

88.4%

Current - Output (Max) :

4A

Length :

53mm

Voltage - Output 6 :

-
