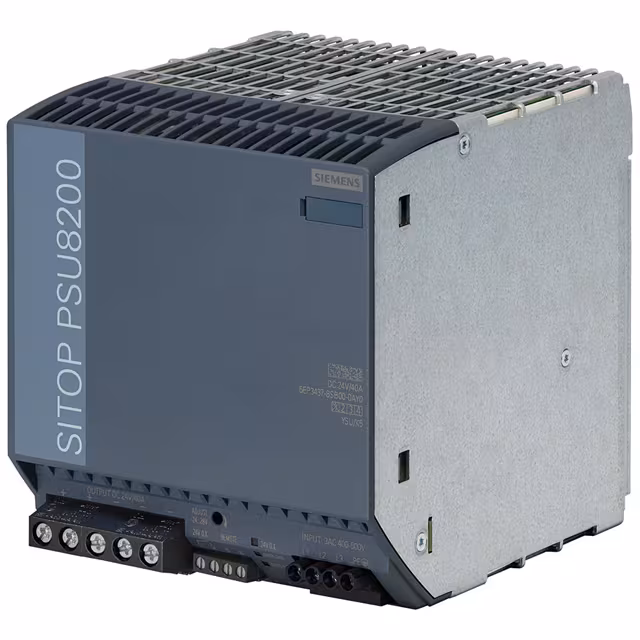

6EP34378SB000AY0

Manufacturer :

Siemens

Product Category :

Voltage - Output 6 :

-

Modular version :

yes

Standard Number :

60950-1; UL 508

Input Voltage :

500V

Size / Dimension :

5.91 L x 5.31 W x 5.71 H (150.0mm x 135.0mm x 145.0mm)

Output Voltage :

24V

Depth :

150

Number of Outputs :

1

Width :

135

Voltage - Output 5 :

-

Series :

SITOP PSU8200

Voltage - Output 2 :

-

Height :

145

Product Status :

Active

Current - Output (Max) :

40A

Type :

Stabilised

Rail mounting possible :

yes

Efficiency :

94%

Output Current :

40A

Minimum Load Required :

-

Operating Temperature :

-25°C ~ 70°C (With Derating)

Features :

Adjustable Output, IP20

Package :

Bulk

Voltage - Output 4 :

-

Voltage type of supply voltage :

AC

Degree of protection (IP) :

IP20

Voltage - Output 3 :

-

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Approval Agency :

CB, cCSAus, CE, CSA, cUL, cULus, UL

Power (Watts) :

960W

Voltage - Output 1 :

24V

Power Rating :

960W

Type of electric connection :

Screw connection

Input Type :

AC

Mounting Type :

DIN Rail Mount
