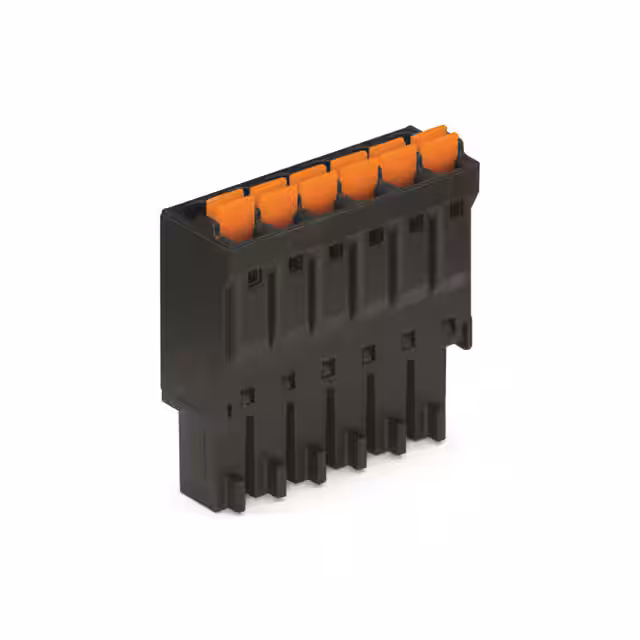

714-104

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Insulation Height :

0.307 (7.80mm)

Header Orientation :

-

Maximum Voltage Rating :

150V

Wire Strip Length :

9-10mm

Plug Wire Entry :

180°

Number of Levels :

1

Wire Gauge or Range - AWG :

16-24 AWG

Positions Per Level :

4

Current - IEC :

8A

Housing Material :

Polyamide

Material Flammability Rating :

UL94 V-0

Ingress Protection :

-

Manufacturer :

Wago

Screw Size :

-

Contact Mating Finish :

Tin

Color :

Black

Wire Type :

Solid Wire;Stranded Wire

ECCN (US) :

EAR99

Pitch :

3.5mm

Torque - Screw :

-

Termination Style :

Screwless - Leg Spring, Push-In Spring

Features :

-

Number of Circuits :

4

Terminal Pitch (mm) :

3.5

Automotive :

No

Number of Ports :

4

Maximum Operating Temperature (°C) :

100

Voltage - IEC :

320 V

Package :

Box

Contact Tail Length :

-

Wire Gauge or Range - mm² :

0.2-1.5mm²

Number of Positions :

4

Contact Material :

COPPER ALLOY

HTS :

8536.69.40.40

Number of Rows :

1

Current - UL :

8 A

Operating Temperature :

-60°C ~ 100°C

EU RoHS :

Compliant

Termination Method :

Spring Clamp

Minimum Operating Temperature (°C) :

-60

Housing Color :

Black

Number of Contacts :

4

Product Status :

Active

Mounting Type :

Free Hanging (In-Line)

Gender :

F

Series :

MCSMINI SL

Type :

PC Terminal Block

Maximum Current Rating (A) :

8

Voltage - UL :

150 V

PPAP :

No
