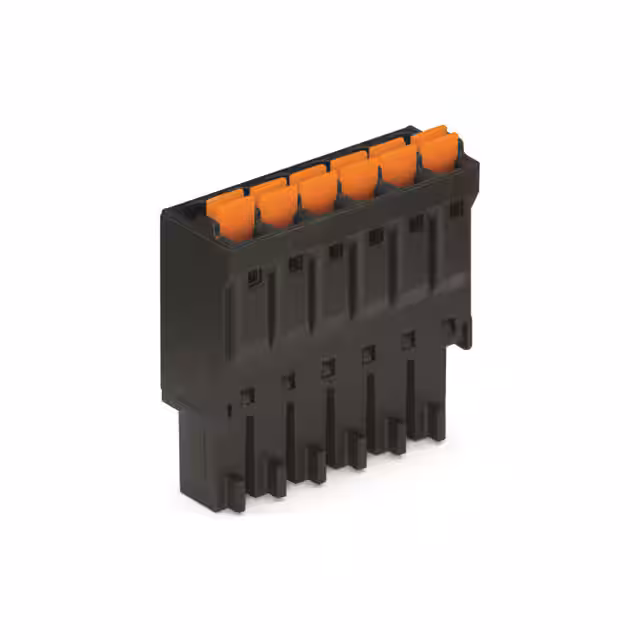

714-105

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

EU RoHS :

Compliant

Current - IEC :

8A

Number of Contacts :

5

ECCN (US) :

EAR99

Transparent :

No

Number of Positions :

5

Plug Wire Entry :

180°

Features :

-

Wire Gauge or Range - AWG :

16-24 AWG

Number of Levels :

1

Connectable conductor cross section solid-core :

0.2 - 1.5

Operating Temperature :

-60°C ~ 100°C

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 0.75

Torque - Screw :

-

Product Status :

Active

Wire Type :

Solid Wire;Stranded Wire

Header Orientation :

-

Contact Tail Length :

-

Color :

Black

Rated current In :

8

HTS :

8536.69.40.40

Screw Size :

-

Connectable conductor cross section multi-wired :

0.2 - 1.5

Current - UL :

8 A

Termination Style :

Screwless - Leg Spring, Push-In Spring

Height :

7.8

Voltage - UL :

150 V

Contact Material :

COPPER ALLOY

Series :

MCSMINI SL

Inflammability class of insulation material according to with UL94 :

V0

Width :

3.5

Ingress Protection :

-

Voltage - IEC :

320 V

Automotive :

No

Housing Material :

Polyamide

Package :

Box

Positions Per Level :

5

Depth :

23

Wire Gauge or Range - mm² :

0.2-1.5mm²

Pitch :

3.5mm

Length :

7.8

Contact Mating Finish :

Tin

Insulation Height :

0.307 (7.80mm)

Manufacturer :

Wago

Type :

Plug, Female Sockets

Gender :

FEMALE

Mounting Type :

Free Hanging (In-Line)

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 1.5

Wire Strip Length :

9-10mm

Number of Ports :

5

PPAP :

No

Material Flammability Rating :

UL94 V-0

Number of Rows :

1
