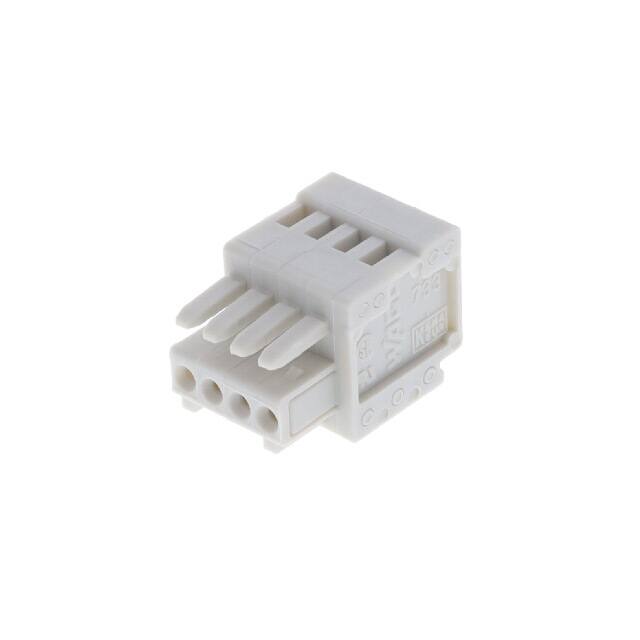

733-104

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Current - IEC :

6A

Voltage :

150 V

Pitch :

0.098 (2.50mm)

Pins per row :

4

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 0.34

Rated Current :

6A

Min. cross section :

0.08mm²

Wire Strip Length :

5-6mm

Dim :

(L x W x H) 11.80 x 17.10 x 12.10 mm

Product Depth (mm) :

12(mm)

AWG max. :

20

Number of Contact Rows :

1

Product Height (mm) :

17.2(mm)

Wire Gauge or Range - mm² :

0.08-0.5mm²

Height :

12.10mm

Product Length (mm) :

12.2(mm)

Current :

4 A

Stripping Length :

5-6 mm

Number of Positions :

4

Packaging :

Box

ECCN Code :

EAR99

Package :

Bulk

Manufacturer part # :

733-104

Inflammability class of insulation material according to with UL94 :

V0

Current - UL :

4 A

Temperature :

-60-100 °C

Length :

11.80mm

Nominal current - rounded value :

6A

Number of Rows :

1

AWG (min.) :

28

Type of electric connection :

Spring clamp connection

CS :

2.50mm

Industrial packaging :

yes

Operating Temperature :

-60°C ~ 100°C

Voltage - IEC :

320 V

Termination Style :

Screwless - Spring Cage, Tension Clamp

Wire Gauge :

20-28(AWG)

Stripping length (max.) :

6.00mm

Rated current In :

6

Rated Voltage :

160V

Material housing :

Plastic

Contact Mating Finish :

Tin

Contact Finish :

Tin

Rad Hardened :

No

Header Orientation :

-

Base Product Number :

733

Degree of protection (IP), mounted :

IP20

Positions Per Level :

4

Content :

200pc(s)

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Connection :

Spring-loaded terminal

Reach Compliance Code :

Compliant

Fastening Method :

PLUG IN/SPRING LOADED

HTS Code :

8536.90.40.00

Product Status :

Active

Wire Gauge or Range - AWG :

20-28 AWG

Housing Color :

Light Gray

Pollution degree :

2

Material Flammability Rating :

UL94 V-0

Nominal current :

6A

Number of Decks :

1

Case material :

PA 66

Material contact :

Other copper alloys

Approvals :

CCA, CSA, UL

Current Rating (Max) :

6(A)

Insulation Height :

0.465 (11.80mm)

max. cross section :

0.5mm²

Safety Approval :

UL; CSA

Manufacturer :

Wago

Total number of pins :

4

With protective conductor :

No

Rated surge voltage :

2.5

Screw Size :

-

Torque - Screw :

-

Connectable conductor cross section solid-core :

0.08 - 0.5

Features :

Retention Latches (Non-Wire Side)

Series :

733

Contact Tail Length :

-

Color :

Gray

Material of contact surface :

Tin

Operating Voltage (Max) :

320V

Mounting Style :

CABLE

No. of rows :

1

Nominal voltage :

160V

Body Orientation :

Straight

Connectable conductor cross section multi-wired :

0.08 - 0.5

Connector contact surface :

Tin plated

Over voltage category :

III

Contact Material :

COPPER ALLOY

Wire Size :

28-20 AWG

Contact Pitch (mm) :

2.5(mm)

Size :

28-20 AWG

Plug Wire Entry :

180°

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 0.5

Gender :

F

Wire Size (AWG) :

28AWG to 20AWG

Voltage - UL :

150 V

Number of Ways :

4

Type :

Terminal Block

Mounting Type :

Free Hanging (In-Line)

Ingress Protection :

-

Number of Levels :

1

Width :

17.10mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Number of Contacts :

4 Pole
