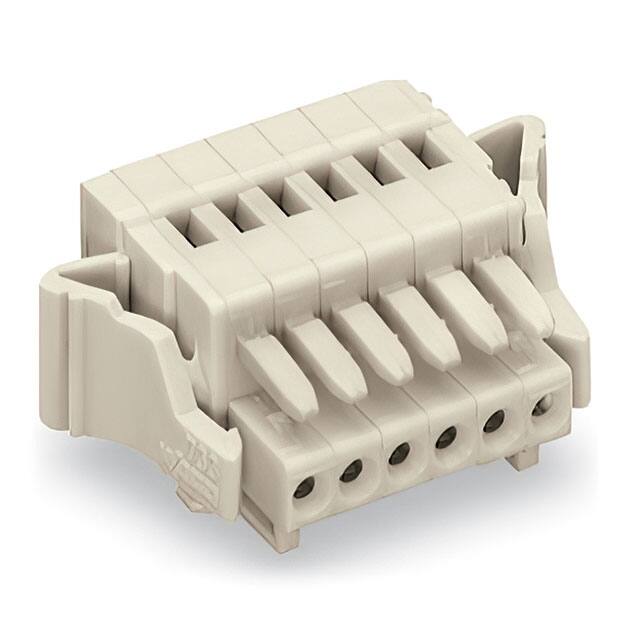

733-107/037-000

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

EU RoHS :

Compliant

Number of Rows :

1

Connection :

Spring-loaded terminal

max. cross section :

0.5mm²

Degree of protection (IP), mounted :

IP20

Ingress Protection :

-

Approvals :

UL

Maximum Operating Temperature (°C) :

100

Length :

11.80mm

Type :

PC Terminal Block

Current - IEC :

6A

Voltage - UL :

150 V

Voltage :

150 V

Automotive :

No

ECCN (US) :

EAR99

Operating Temperature :

-60°C ~ 100°C

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 0.34

Body Orientation :

Straight

Maximum Voltage Rating :

150V

Stripping Length :

5-6 mm

Wire Gauge or Range - mm² :

0.08-0.5mm²

Width :

29.30mm

Connectable conductor cross section solid-core :

0.08 - 0.5

Total number of pins :

7

Connectable conductor cross section multi-wired :

0.08 - 0.5

Product Length (mm) :

29.3

Product Depth (mm) :

17.1

Minimum Operating Temperature (°C) :

-60

Positions Per Level :

7

Over voltage category :

III

Type of electric connection :

Spring clamp connection

Min. cross section :

0.08mm²

Pins per row :

7

Termination Method :

Spring Clamp

Number of Circuits :

7

With protective conductor :

No

Pitch :

0.098 (2.50mm)

Torque - Screw :

-

PPAP :

No

Material housing :

Plastic

Features :

+ lateral latch

Mounting :

Cable Mount

Terminal Pitch (mm) :

2.5

Mounting Type :

Free Hanging (In-Line)

Package :

Box

No. of rows :

1

Nominal current :

6A

Series :

733

Size :

28-20 AWG

Temperature :

-60-100 °C

Wire Strip Length :

5-6mm

Number of Positions :

7

Contact Tail Length :

-

Height :

17.10mm

Material of contact surface :

Tin

Dim :

(L x W x H) 11.80 x 29.30 x 17.10 mm

Stripping length (max.) :

6.00mm

Material contact :

Other copper alloys

Contact Mating Finish :

Tin

Number of Levels :

1

Voltage - IEC :

320 V

Contact Material :

COPPER ALLOY

AWG (min.) :

28

Header Orientation :

-

Number of Contacts :

7

Product Height (mm) :

11.8

Housing Material :

Polyamide (PA66), Nylon 6/6

Connector contact surface :

Tin plated

Manufacturer part # :

733-107/037-000

Inflammability class of insulation material according to with UL94 :

V0

Housing Color :

Light Gray

Current - UL :

4 A

Nominal voltage :

160V

Maximum Current Rating (A) :

6

Nominal current - rounded value :

6A

Manufacturer :

Wago

Rated surge voltage :

2.5

Case material :

PA 66

CS :

2.50mm

Color :

Gray

Current :

4 A

Gender :

F

Material Flammability Rating :

UL94 V-0

Rated current In :

6

Content :

50pc(s)

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 0.5

Contact Finish :

Tin

HTS :

8536.69.40.40

Insulation Height :

0.465 (11.80mm)

AWG max. :

20

Termination Style :

Screwless - Push-In Spring

Screw Size :

-

Industrial packaging :

yes

Plug Wire Entry :

180°

Wire Gauge or Range - AWG :

20-28 AWG

Pollution degree :

2

Product Status :

Active

Wire Size :

28-20 AWG
