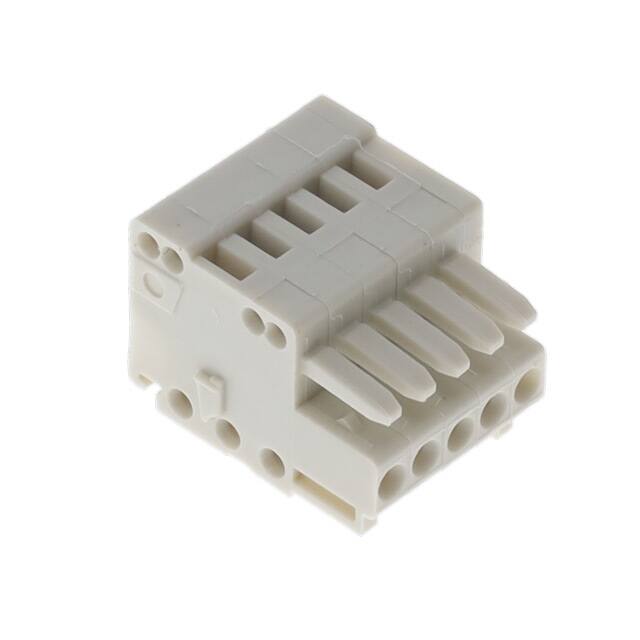

733-105

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Contact Pitch (mm) :

2.5(mm)

Number of Positions :

5

Height :

14.60mm

Product Height (mm) :

17.2(mm)

Total number of pins :

5

Torque - Screw :

-

Product Depth (mm) :

12(mm)

Color :

Gray

Wire Size :

28-20 AWG

Number of Rows :

1

Mounting Style :

CABLE

Stripping Length :

5-6 mm

CS :

2.50mm

HTS Code :

8536.69.40.40

Operating Voltage (Max) :

250VAC

Nominal voltage :

160V

Material Flammability Rating :

UL94 V-0

Nominal current - rounded value :

6A

AWG max. :

20

Approvals :

CCA, CSA, UL

ECCN Code :

EAR99

Contact Mating Finish :

Tin

Min. cross section :

0.08mm²

Manufacturer :

Wago

Pins per row :

5

Number of Decks :

1

Content :

1pc(s)

Termination Style :

Screwless - Spring Cage, Tension Clamp

Size :

28-20 AWG

Length :

11.80mm

Wire Gauge :

20-28(AWG)

Current - UL :

4 A

Industrial packaging :

yes

Voltage - IEC :

320 V

Gender :

F

Rated Current :

6A

Product Status :

Active

Voltage - UL :

150 V

Connection :

-

Plug Wire Entry :

180°

Safety Approval :

UL; CSA

Operating Temperature :

-60°C ~ 100°C

Type :

spring cage connector

Insulation Height :

0.465 (11.80mm)

Pitch :

0.098 (2.50mm)

Contact Tail Length :

-

Dim :

(L x W x H) 11.80 x 17.10 x 14.60 mm

Wire Gauge or Range - AWG :

20-28 AWG

Number of Levels :

1

Number of Ways :

5

Case material :

PA 66

Manufacturer part # :

733-105

Stripping length (max.) :

6.00mm

Voltage :

150 V

Rad Hardened :

No

Packaging :

Box

AWG (min.) :

28

Wire Gauge or Range - mm² :

0.08-0.5mm²

Contact Material :

COPPER ALLOY

Current Rating (Max) :

4(A)

Body Orientation :

Straight

Wire Strip Length :

5-6mm

Package :

Bulk

Ingress Protection :

-

Nominal current (details) :

4A

Screw Size :

-

Current :

4 A

Contact Finish :

Tin

Number of Contacts :

5 Pole

Wire Size (AWG) :

28AWG to 20AWG

Reach Compliance Code :

Compliant

Nominal current :

6A

Temperature :

-60-100 °C

Current - IEC :

6A

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Header Orientation :

-

Features :

Retention Latches (Non-Wire Side)

Pins :

5

Positions Per Level :

5

Housing Color :

Light Gray

Fastening Method :

PLUG IN/SPRING LOADED

Width :

17.10mm

Rated Voltage :

160V

max. cross section :

0.5mm²

Base Product Number :

733

Housing Material :

Polyamide (PA66), Nylon 6/6

Series :

733

Product Length (mm) :

14.7(mm)

Mounting Type :

Free Hanging (In-Line)

Number of Contact Rows :

1

No. of rows :

1
