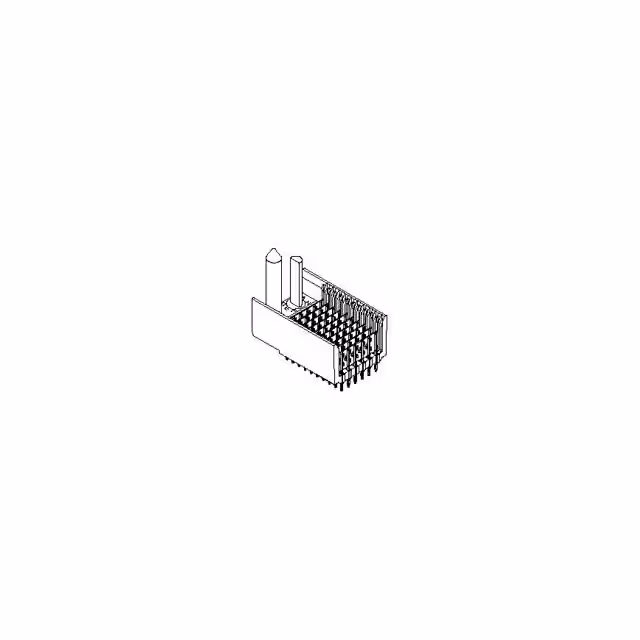

76761-8501

Manufacturer :

Molex

Product Category :

Specialized

Number Of PCB Rows :

6

Housing Material :

Liquid Crystal Polymer (LCP)

ECCN Code :

EAR99

Dielectric Withstanding Voltage :

750VAC V

Features :

Shielded

Current Rating (Max) :

1/Contact(A)

RoHS :

Details

Product Height (mm) :

25.8(mm)

PCB Contact Row Spacing :

2.2606 mm

Total Number of Contacts :

150

Mounting Type :

Through Hole

Pitch :

2 mm

Number of Rows :

6 Row

Termination Type :

Press Fit

Mounting Style :

Through Hole

PCB Contact Pattern :

RECTANGULAR

Contact Finish Thickness :

30.0µin (0.76µm)

Product Depth (mm) :

17.3(mm)

Body Orientation :

Straight

Current Rating (Amps) :

1A

Operating Temp Range :

-55C to 85C

Number of Columns :

25

Insulation Resistance :

10000000000 Ω

Contact Pattern :

RECTANGULAR

Mating Contact Pitch :

0.079 inch

Rated Current (Signal) :

1 A

Voltage Rating Max :

120VDC/120VAC

Operating Temperature :

-55°C ~ 105°C

Product Status :

Active

Mating Contact Row Spacing :

0.089 inch

Material Flammability Rating :

UL94 V-0

Body Breadth :

0.681 inch

Product :

Headers

Connector Style :

VHDM, Guide Left

HTS Code :

8536.69.40.40

Tradename :

VHDM

Brand :

Molex

Termination Style :

Solder Tail

Connector Type :

Header, Male Pins

Contact Resistance :

10 MΩ

Contact Material :

COPPER ALLOY

Contact Finish :

Gold

Number of Positions Loaded :

All

Current Rating :

1 A

Body Depth :

0.484 inch

Durability :

200 Cycles

Voltage Rating :

120 V

Product Category :

Hard Metric Connectors

Contact Style :

BLADE PIN-SKT

Mounting Option 1 :

LOCKING

Contact Plating :

Gold Over Nickel

Terminal Pitch :

2.0066 mm

Termination Method :

Solder

Housing Color :

Black

Polarization Key :

POLARIZED HOUSING

Pitch (mm) :

1(mm)

Mounting Angle :

Vertical

Plating Thickness :

30u inch

Packaging :

Tube

Insulator Color :

Black

Minimum Operating Temperature :

- 55 C

Product Length (mm) :

50(mm)

Contact Layout, Typical :

-

Number of Contact Rows :

6

Series :

76761

Subcategory :

Backplane Connectors

Reliability :

COMMERCIAL

Number of Positions :

150 Position

Maximum Operating Temperature :

+ 105 C

Reference Standard :

UL

Color :

Black

Termination :

Press-Fit

Type :

VHDM

Product Type :

Hard Metric Connectors

Connector Usage :

-

Manufacturer :

Molex

Contact Finish Termination :

Tin

Number of Contacts :

150(POS)

Gender :

HDR

Contact Gender :

Male

Package :

Box

Reach Compliance Code :

Unknown
