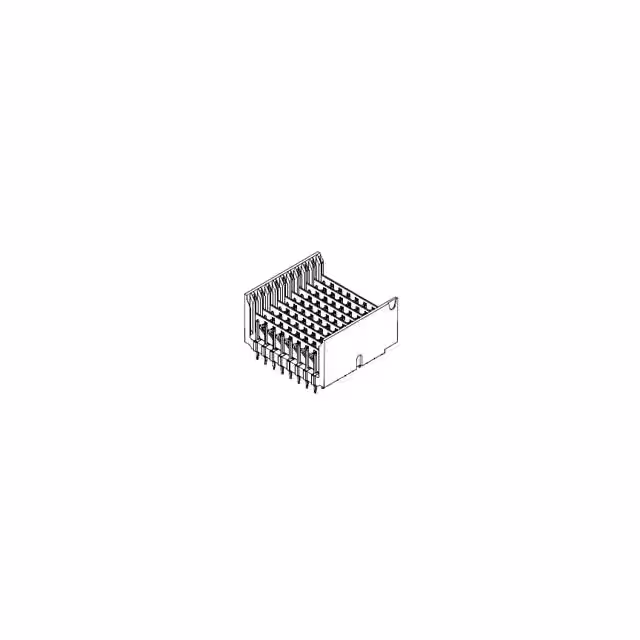

76763-8501

Manufacturer :

Molex

Product Category :

Specialized

Operating Temperature :

-55°C ~ 85°C

Number of Rows :

6 Row

Body Orientation :

Straight

Product :

Headers

Mounting Type :

Through Hole

Product Depth (mm) :

17.1(mm)

RoHS :

Details

Packaging :

Tube

Pitch :

2 mm

Connector Style :

VHDM

Product Length (mm) :

50(mm)

Number of Positions Loaded :

All

Subcategory :

Backplane Connectors

Tradename :

VHDM

Current Rating (Amps) :

1A

Mounting Angle :

Vertical

Manufacturer :

Molex

Current Rating (Max) :

1/Contact(A)

Product Category :

Hard Metric Connectors

Package :

Box

Number of Contacts :

150(POS)

Number of Columns :

25

Operating Temp Range :

-55C to 85C

Contact Plating :

Gold Over Nickel

Pitch (mm) :

2(mm)

Brand :

Molex

Termination :

Press-Fit

Type :

VHDM

Maximum Operating Temperature :

+ 85 C

Mounting Style :

Through Hole

Minimum Operating Temperature :

- 55 C

Contact Layout, Typical :

-

Contact Finish :

Gold

Number of Positions :

150 Position

Contact Finish Thickness :

30.0µin (0.76µm)

Product Height (mm) :

12.3(mm)

Product Type :

Hard Metric Connectors

Series :

76763

Connector Usage :

-

Product Status :

Active

Voltage Rating Max :

120VDC/120VAC

Contact Material :

COPPER ALLOY

Termination Method :

Solder

Housing Color :

Black

Features :

Shielded

Connector Type :

Header, Male Pins

Termination Style :

Solder Tail

Number of Contact Rows :

6

Color :

Black

Current Rating :

1 A

Voltage Rating :

120 V

Gender :

HDR

Material Flammability Rating :

UL94 V-0

Housing Material :

Liquid Crystal Polymer (LCP)
