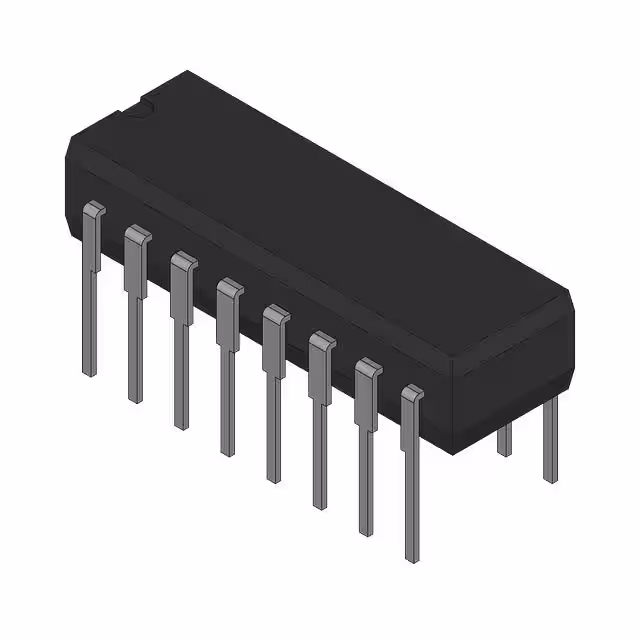

8415001EA

Manufacturer :

Texas Instruments

Product Category :

Flip Flops

Family :

HC

Quiescent Current :

4 µA

Number of Elements :

2

Surface Mount :

No

Power Supplies :

2/6 V

Propagation Delay :

345 ns

Width :

6.92 mm

Clock Edge Trigger Type :

POSITIVE EDGE

Terminal Pitch :

2.54 mm

Terminal Form :

THROUGH-HOLE

Output Polarity :

Complementary

Temperature Grade :

Military

Schmitt Trigger :

No

Technology :

CMOS

Height :

5.08 mm

HTS Code :

8542.39.00.01

fmax-Min :

25 MHz

Manufacturer :

Texas

Low Level Output Current :

5.2 mA

Brand Name :

Texas

Min Supply Voltage :

2 V

Supply Voltage-Max (Vsup) :

6 V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Logic Function :

JK-Type

Mount :

Through Hole

Pin Count :

16

Max Supply Voltage :

6 V

RoHS :

Compliant

Supply Voltage-Min (Vsup) :

2 V

Contact Plating :

Lead, Tin

Trigger Type :

POSITIVE EDGE

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Max Operating Temperature :

125 °C

Series :

*

Lifecycle Status :

Production (Last Updated: 5 days ago)

Packing Method :

Tube

Terminal Position :

Dual

Seated Height-Max :

5.08 mm

Subcategory :

FF/Latch

Thickness :

4.57 mm

Additional Feature :

DUMMY VAL

Factory Lead Time :

1 Week

Max I(ol) :

-0.004 A

Frequency :

23 MHz

High Level Output Current :

-5.2 mA

Number of Bits :

2

Package Shape :

RECTANGULAR

Screening Level :

MIL-STD-883

Polarity :

Non-Inverting

Logic IC Type :

J-KBAR FLIP-FLOP

Package :

Tube

Number of Pins :

16

Min Operating Temperature :

-55 °C

Length :

19.56 mm

Qualification Status :

Qualified

Number of Terminals :

16

Reach Compliance Code :

not_compliant

Power Supply Current-Max (ICC) :

0.04 mA

Lead Free :

Contains Lead

Propagation Delay (tpd) :

250 ns

Number of Functions :

2

Operating Supply Voltage :

5 V

JESD-30 Code :

R-GDIP-T16

Product Status :

Active
