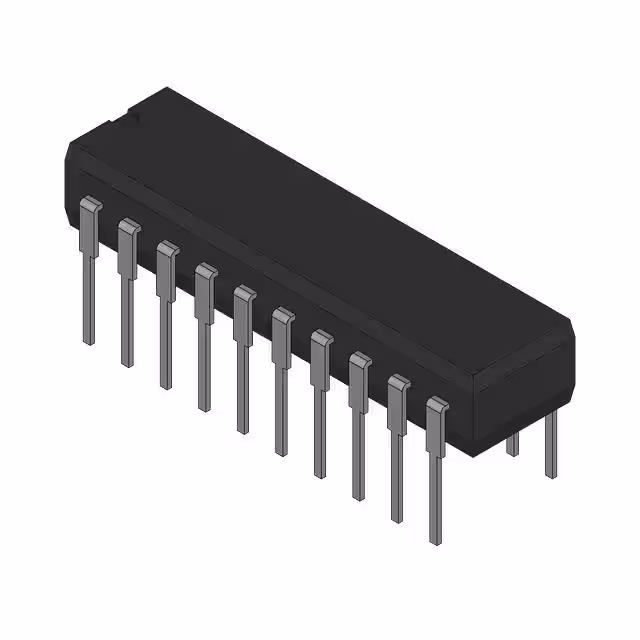

8415301RA

Manufacturer :

Texas Instruments

Product Category :

Signal Switches, Multiplexers, Decoders

Pin Count :

20

Logic IC Type :

IDENTITY COMPARATOR

Height :

5.08 mm

Length :

24.2 mm

Terminal Pitch :

2.54 mm

Power Supplies :

5 V

Qualification Status :

Qualified

Power Supply Current-Max (ICC) :

65 mA

Output Type :

TTL

RoHS :

Compliant

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Lead Free :

Contains Lead

HTS Code :

8542.39.00.01

Supply Voltage-Max (Vsup) :

5.25 V

Factory Lead Time :

1 Week

Screening Level :

MIL-STD-883

Surface Mount :

No

Packing Method :

Tube

Mount :

Through Hole

Min Supply Voltage :

4.5 V

Propagation Delay (tpd) :

23 ns

Terminal Form :

THROUGH-HOLE

Lifecycle Status :

Production (Last Updated: 2 days ago)

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Polarity :

Inverting

Output Polarity :

INVERTED

Manufacturer :

Texas

Contact Plating :

Lead, Tin

ECCN Code :

EAR99

Max Supply Voltage :

5.5 V

Product Status :

Active

Packaging :

Rail/Tube

Brand Name :

Texas

Turn-On Delay Time :

23 ns

Max Operating Temperature :

125 °C

Series :

*

Technology :

TTL

Low Level Output Current :

12 mA

Subcategory :

Arithmetic Circuit

Min Operating Temperature :

-55 °C

Number of Bits :

8

Reach Compliance Code :

not_compliant

Number of Functions :

1

Package :

Tube

Operating Supply Voltage :

5 V

JESD-30 Code :

R-GDIP-T20

Thickness :

4.57 mm

Package Shape :

RECTANGULAR

Number of Pins :

20

Supply Voltage-Min (Vsup) :

4.85 V

Width :

6.92 mm

Seated Height-Max :

5.08 mm

Max I(ol) :

0.024 A

Number of Terminals :

20

High Level Output Current :

-400 µA

Propagation Delay :

23 ns

Terminal Position :

Dual

Temperature Grade :

Military

Family :

LS
