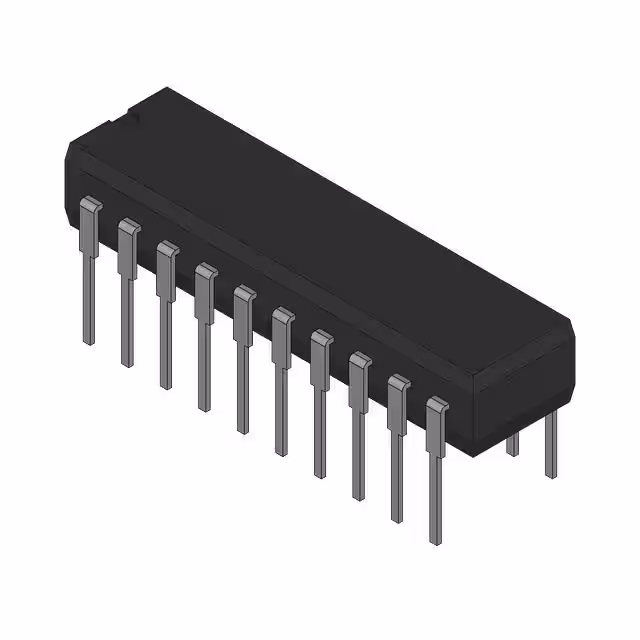

8415501RA

Manufacturer :

Texas Instruments

Product Category :

Buffers, Drivers, Receivers, Transceivers

Package Shape :

RECTANGULAR

High Level Output Current :

-12 mA

Additional Feature :

WITH DUAL OUTPUT ENABLE

Surface Mount :

No

Temperature Grade :

Military

Number of Bits :

8

Number of Terminals :

20

Supply Voltage-Max (Vsup) :

5.5 V

Number of Channels :

8

Screening Level :

MIL-STD-883

Height :

5.08 mm

Number of Elements :

1

Operating Supply Voltage :

5 V

Reach Compliance Code :

not_compliant

Min Supply Voltage :

4.5 V

Max I(ol) :

0.024 A

Count Direction :

Unidirectional

Product Status :

Active

Brand Name :

Texas

Number of Functions :

1

Output Characteristics :

3-STATE

Contact Plating :

Lead, Tin

Lifecycle Status :

Production (Last Updated: 5 days ago)

Number of Outputs :

8

Series :

*

Thickness :

4.57 mm

Seated Height-Max :

5.08 mm

RoHS :

Compliant

HTS Code :

8542.39.00.01

Packing Method :

Tube

Polarity :

Inverting

Output Polarity :

INVERTED

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Width :

6.92 mm

JESD-30 Code :

R-GDIP-T20

Factory Lead Time :

1 Week

Min Operating Temperature :

-55 °C

Technology :

TTL

Terminal Form :

THROUGH-HOLE

Length :

24.2 mm

Power Supply Current-Max (ICC) :

52 mA

Number of Ports :

2

Max Operating Temperature :

125 °C

Base Product Number :

8415501

Number of Inputs :

8

Lead Free :

Contains Lead

Propagation Delay (tpd) :

15 ns

Family :

LS

Propagation Delay :

38 ns

Qualification Status :

Qualified

Logic IC Type :

BUS DRIVER

Control Type :

ENABLE LOW

Number of Pins :

20

Manufacturer :

Texas

Low Level Output Current :

12 mA

Output Type :

TTL

Terminal Position :

Dual

Power Supplies :

5 V

Package :

Tube

Supply Voltage-Min (Vsup) :

4.5 V

Terminal Pitch :

2.54 mm

Logic Function :

Buffer

Max Supply Voltage :

5.5 V

Mount :

Through Hole

Subcategory :

Bus Driver/Transceiver

Pin Count :

20

Packaging :

Rail/Tube
