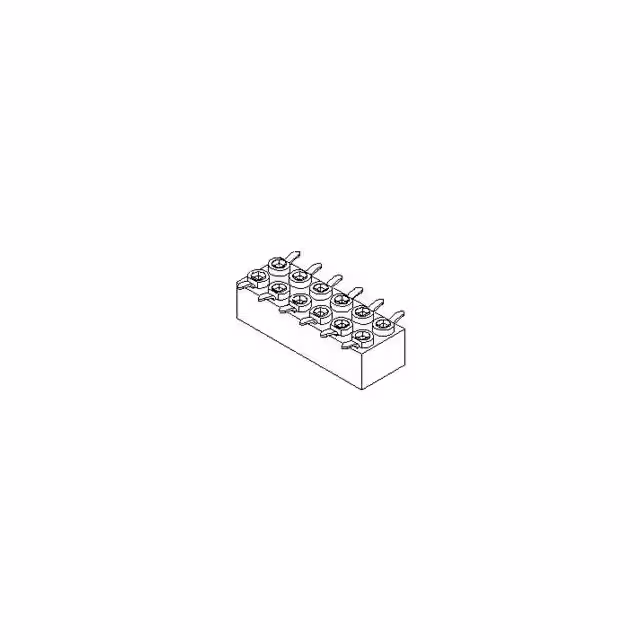

87263-0625

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Reach Compliance Code :

Compliant

Product Length (mm) :

6(mm)

Contact Gender :

Socket (Female)

Plating Thickness :

30u inch

Accessory Type :

-

Mating Contact Pitch :

0.079 inch

Pitch (mm) :

2(mm)

Contact Pattern :

RECTANGULAR

Product Height (mm) :

2.8(mm)

Mixed Contacts :

No

Current Rating (Max) :

1/Contact(A)

Voltage Rating :

125 V

Number Of PCB Rows :

4

Packaging :

Tube

Glow Wire Compliant :

Non-Compliant

Brand :

Molex

Minimum Operating Temperature :

- 55 C

Product Status :

Active

Reference Standard :

UL

JESD-609 Code :

e3

IEC Conformance :

No

Number of Contact Rows :

2

Mounting Type :

BOARD

Flammability Rating :

UL 94 V-0

Product Depth (mm) :

6.2(mm)

Termination Style :

Solder

Pitch :

2 mm

Application :

Board-to-Board

Contact Resistance :

15 mΩ

Number of Circuits :

6

Reliability :

COMMERCIAL

Flammability :

94V-0

Total Number of Contacts :

6

Package :

Box

Type :

Socket Strip

Body/Shell Style :

Receptacle

Rated Current (Signal) :

1 A

Maximum Operating Temperature :

+ 105 C

Body Breadth :

0.165 inch

Operating Temp Range :

-55C to 105C

Insulation Resistance :

1000000000 Ω

Option :

GENERAL PURPOSE

Tradename :

Milli-Grid

Body Depth :

0.11 inch

Filter Feature :

No

Housing Gender :

-

Mounting Angle :

Bottom Entry

Row Spacing :

2 mm

Current Rating :

1 A

Manufacturer :

Molex

RoHS :

Details

Contact Material :

Phosphor Bronze

Gender :

RCP

Termination Method :

Solder

Pbfree Code :

yes

Housing Color :

Black

Mating Contact Row Spacing :

0.079 inch

Product Category :

Headers and Wire Housings

MIL Conformance :

No

Number of Rows :

2 Row

Mounting Option 1 :

LOCKING

Series :

87263

Housing Material :

Thermoplastic (TP)

Voltage Rating Max :

125V

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Termination Type :

Surface Mount

Body Orientation :

Straight

Orientation :

Bottom Entry

Contact Plating :

Gold Over Nickel

Board Mounting Option :

PEG

Subcategory :

Headers and Wire Housings

Terminal Pitch :

2 mm

Mounting Style :

Surface Mount

Number of Contacts :

6(POS)

Dielectric Withstanding Voltage :

1000VAC V

Number of Positions :

6 Position

Durability :

25 Cycles

UL Flammability Code :

94V-0

Product Type :

Headers and Wire Housings

Connector Type :

BOARD CONNECTOR

Contact Type :

-

Product :

Headers

DIN Conformance :

No
