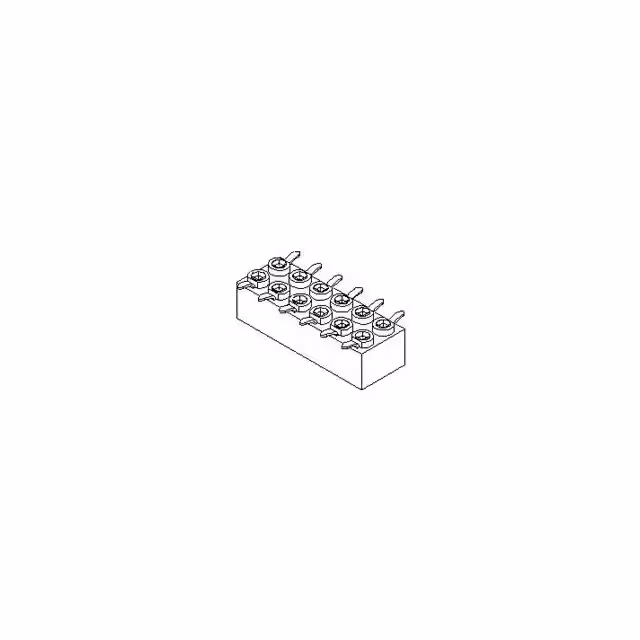

87263-1423

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Type :

Socket Strip

Minimum Operating Temperature :

- 55 C

DIN Conformance :

No

Flammability :

94V-0

Series :

87263

JESD-609 Code :

e3

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Number Of PCB Rows :

4

Total Number of Contacts :

14

Mounting Style :

Surface Mount

Contact Type :

-

Housing Color :

Black

Terminal Pitch :

2 mm

Additional Feature :

ROHS,ELV COMPLIANT W/TUBE PKG

Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Manufacturer :

Molex

Reference Standard :

UL

Contact Gender :

Socket (Female)

Body Orientation :

Straight

Tradename :

Milli-Grid

Filter Feature :

No

Brand :

Molex

RoHS :

Details

Mating Contact Pitch :

0.079 inch

Maximum Operating Temperature :

+ 105 C

Housing Material :

Thermoplastic (TP)

Durability :

25 Cycles

Insulation Resistance :

1000000000 Ω

Termination Style :

Solder

Contact Plating :

Gold Over Nickel

Product Status :

Active

Product Length (mm) :

14(mm)

Number of Contact Rows :

2

Gender :

RCP

Application :

Board-to-Board

Pitch :

2 mm

Accessory Type :

-

Product Category :

Headers and Wire Housings

Pitch (mm) :

2(mm)

Pbfree Code :

yes

Package :

Box

Body Depth :

0.11 inch

Connector Type :

BOARD CONNECTOR

Row Spacing :

2 mm

Rated Current (Signal) :

1 A

IEC Conformance :

No

ECCN Code :

EAR99

Voltage Rating :

125 V

Housing Gender :

-

Orientation :

Bottom Entry

Mating Contact Row Spacing :

0.079 inch

UL Flammability Code :

94V-0

Plating Thickness :

15u inch

HTS Code :

8536.69.40.40

Product Depth (mm) :

6.2(mm)

Product Type :

Headers and Wire Housings

Product Height (mm) :

2.8(mm)

Product :

Headers

Dielectric Withstanding Voltage :

1000VAC V

Current Rating :

1 A

Current Rating (Max) :

1/Contact(A)

Board Mounting Option :

PEG

Body Breadth :

0.165 inch

Flammability Rating :

UL 94 V-0

Number of Rows :

2 Row

Mounting Option 1 :

LOCKING

Number of Contacts :

14(POS)

MIL Conformance :

No

Reliability :

COMMERCIAL

Termination Method :

Solder

Subcategory :

Headers and Wire Housings

Termination Type :

Surface Mount

Contact Resistance :

15 mΩ

Mounting Angle :

Bottom Entry

Reach Compliance Code :

Compliant

Operating Temp Range :

-55C to 105C

Body/Shell Style :

Receptacle

Mixed Contacts :

No

Mounting Type :

BOARD

Packaging :

Tube

Voltage Rating Max :

125V

Contact Material :

Phosphor Bronze

Number of Positions :

14 Position
