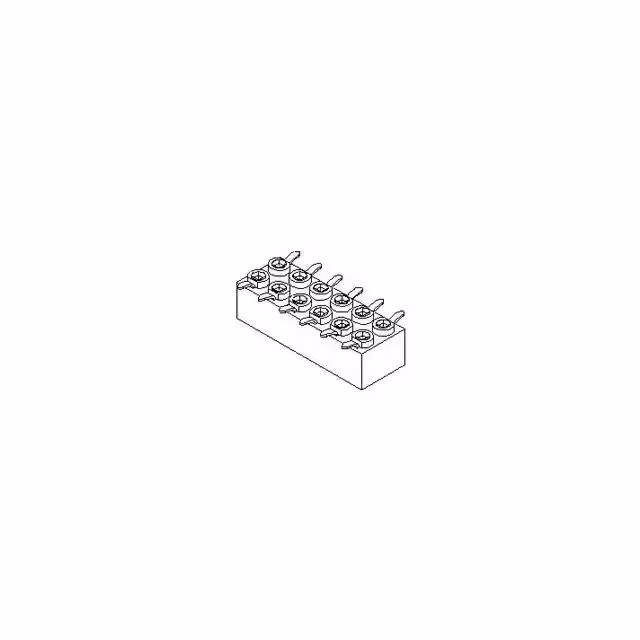

87263-3223

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Number of Contacts :

32(POS)

Row Spacing :

2 mm

MIL Conformance :

No

Product Category :

Headers and Wire Housings

Current Rating :

1 A

Series :

87263

Product Type :

Headers and Wire Housings

HTS Code :

8536.69.40.40

DIN Conformance :

No

Manufacturer :

Molex

Accessory Type :

-

Mounting Angle :

Bottom Entry

Durability :

25 Cycles

ECCN Code :

EAR99

Product Status :

Active

Mating Contact Row Spacing :

0.079 inch

Dielectric Withstanding Voltage :

1000VAC V

Product Length (mm) :

32(mm)

Termination Style :

Solder

Filter Feature :

No

Contact Material :

Phosphor Bronze

Mating Contact Pitch :

0.079 inch

Housing Color :

Black

Mounting Option 1 :

LOCKING

Number of Positions :

32 Position

Additional Feature :

ROHS,ELV COMPLIANT W/TUBE PKG

Reach Compliance Code :

Compliant

Product Depth (mm) :

6.2(mm)

Body/Shell Style :

Receptacle

Rated Current (Signal) :

1 A

Number Of PCB Rows :

4

Package :

Box

IEC Conformance :

No

Number of Rows :

2 Row

Brand :

Molex

Pitch :

2 mm

Body Breadth :

0.165 inch

Packaging :

Tube

Flammability Rating :

UL 94 V-0

Contact Plating :

Gold Over Nickel

Housing Material :

Thermoplastic

Contact Gender :

Socket (Female)

Contact Type :

-

Flammability :

94V-0

Terminal Pitch :

2 mm

Insulation Resistance :

1000000000 Ω

Minimum Operating Temperature :

- 55 C

Board Mounting Option :

PEG

Plating Thickness :

15u inch

Mounting Type :

BOARD

Pitch (mm) :

2(mm)

Termination Type :

Surface Mount

Contact Pattern :

RECTANGULAR

Maximum Operating Temperature :

+ 105 C

Operating Temp Range :

-55C to 105C

JESD-609 Code :

e3

Product :

Headers

Total Number of Contacts :

32

Number of Contact Rows :

2

Reference Standard :

UL

Mounting Style :

Surface Mount

Body Orientation :

Straight

Connector Type :

BOARD CONNECTOR

Application :

Board-to-Board

Mixed Contacts :

No

Reliability :

COMMERCIAL

Tradename :

Milli-Grid

UL Flammability Code :

94V-0

Voltage Rating Max :

125V

Gender :

RCP

RoHS :

Details

Subcategory :

Headers and Wire Housings

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Orientation :

Bottom Entry

Pbfree Code :

yes

Body Depth :

0.11 inch

Type :

Socket Strip

Termination Method :

Solder

Voltage Rating :

125 V

Product Height (mm) :

2.8(mm)

Option :

GENERAL PURPOSE

Contact Resistance :

15 mΩ

Current Rating (Max) :

1/Contact(A)
