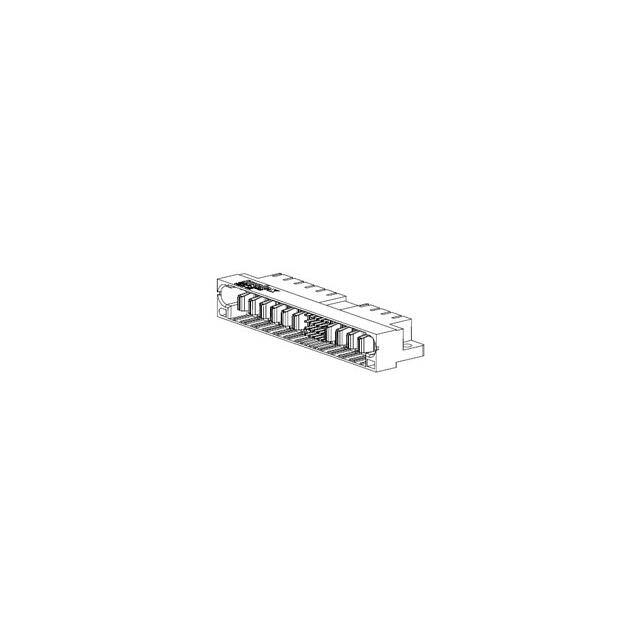

87631-3013

Manufacturer :

Molex

Product Category :

Unclassified

Filter Feature :

No

Contact Gender :

Male

Mounting Type :

BOARD AND PANEL

Manufacturer :

Molex

Type :

Power

Product Height (mm) :

14.58(mm)

Package :

Box

Termination Type :

Solder

Operating Temperature Min Deg. C :

-20C

Total Number of Contacts :

30

Factory Lead Time :

8 Weeks

Option :

GENERAL PURPOSE

Product Depth (mm) :

23.62(mm)

DIN Conformance :

No

IEC Conformance :

No

Contact Material :

COPPER ALLOY

Termination Method :

Solder

Mixed Contacts :

yes

Operating Temp Range :

-20C to 105C

Pbfree Code :

yes

Mounting Style :

Through Hole

Operating Temperature Max Deg. C :

105C

Number of Terminals :

72

Number of Ports :

1(Port)

Packaging :

Tray

Shell Material :

GLASS FILLED LIQUID CRYSTAL POLYMER

Product Status :

Active

Current Rating (Max) :

(30/2.5)/CONTACT(A)

Body Orientation :

RIGHT ANGLE

Connector Type :

RECTANGULAR POWER CONNECTOR

Number of Contacts :

6Power/24Signal(POS)

Voltage Rating Max :

250VDC

MIL Conformance :

No

UL Flammability Code :

94V-0

Product Length (mm) :

69.84(mm)

Series :

*

Empty Shell :

No

Reach Compliance Code :

Unknown

Contact Plating :

Gold Over Nickel

Product Diameter (mm) :

Not Required(mm)

Gender :

HDR
