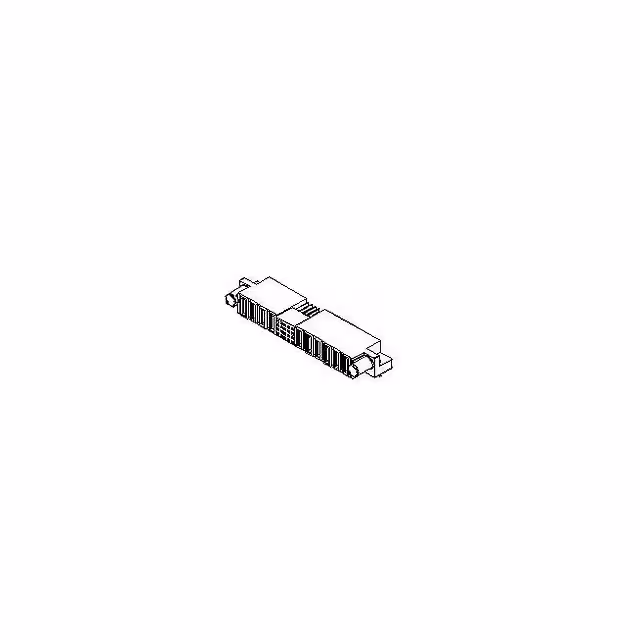

87632-3011

Manufacturer :

Molex

Product Category :

Specialized

Number of Terminals :

32

Subcategory :

Power Connectors

Country of Origin :

SG

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Series :

87632

Number of Ports :

1(Port)

Brand :

Molex

Product Category :

Power to the Board

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

IEC Conformance :

No

Packaging :

Tray

RoHS :

Details

Operating Temperature Min Deg. C :

-20C

Operating Temperature Max Deg. C :

105C

Current Rating (Amps) :

-

Current Rating (Max) :

2.5/Contact(A)

Voltage Rating Max :

250VDC

Mount :

Edge, Through Hole

Contact Finish Thickness :

30.0µin (0.76µm)

Number of Positions Loaded :

All

Connector Type :

Receptacle

Tradename :

EXTreme PowerPlus

Contact Layout, Typical :

16 Signal, 2 Power

MIL Conformance :

No

Orientation :

RIGHT ANGLE

Maximum Operating Temperature :

+ 105 C

Option :

GENERAL PURPOSE

Gender :

RCP

Contact Plating :

Gold

Max Operating Temperature :

105 °C

Material Flammability Rating :

UL94 V-0

Housing Material :

Thermoplastic

Termination Style :

Through Hole

Flammability Rating :

UL94 V-0

JESD-609 Code :

e3

Product Type :

Power to the Board

Number of Contacts :

2Power/16Signal(POS)

Type :

Power

Mounting Type :

Board Edge, Through Hole, Right Angle

Minimum Operating Temperature :

- 20 C

Termination Method :

Solder

Number of Columns :

-

Pbfree Code :

yes

Number of Rows :

4 Row

Operating Temperature :

-20°C ~ 105°C

Contact Finish :

Gold

Connector Style :

-

Number of Positions :

18 Position

Contact Material :

COPPER ALLOY

Current Rating :

50 A

Connector Usage :

-

Filter Feature :

No

Pitch (mm) :

2.54(mm)

Max Voltage Rating (DC) :

250 V

Product Status :

Active

Contact Finish Termination :

Tin (Sn)

Housing Color :

Black

Mixed Contacts :

yes

Termination :

Solder

Radiation Hardening :

No

Color :

Black

Voltage Rating :

250 V

Plating :

Tin

Body Orientation :

RIGHT ANGLE

Manufacturer :

Molex

Features :

Board Lock, Guide Pin

Mounting Angle :

RIGHT ANGLE

Termination Type :

Solder

Min Operating Temperature :

-20 °C

Operating Temp Range :

-20C to 105C

Total Number of Contacts :

18

Number of Circuits :

18

Body/Shell Style :

Receptacle

Package :

Box

Empty Shell :

No

DIN Conformance :

No

Shell Material :

GLASS FILLED POLYETHYLENE

Pitch :

6.35 mm

UL Flammability Code :

94V-0

Reach Compliance Code :

Compliant

Contact Gender :

FEMALE

Mounting Style :

Through Hole
