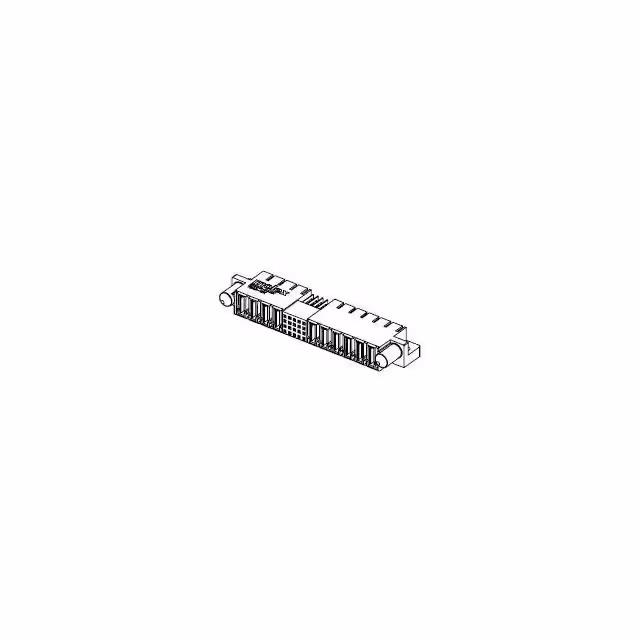

87632-2001

Manufacturer :

Molex

Product Category :

Specialized

Empty Shell :

No

Connector Style :

-

Total Number of Contacts :

28

Length :

57.15 mm

Mixed Contacts :

yes

Mounting Type :

Board Edge, Through Hole, Right Angle

Contact Gender :

FEMALE

Current Rating (Amps) :

-

Gender :

RCP

Country of Origin :

SG

UL Flammability Code :

94V-0

Material Flammability Rating :

UL94 V-0

RoHS :

Details

Series :

87632

Pbfree Code :

yes

Type :

Power

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Connector Usage :

-

Termination Style :

Through Hole

Current Rating :

50 A

Product Status :

Active

Product Height (mm) :

12.9(mm)

Termination Method :

Solder

Plating :

Tin

Max Operating Temperature :

105 °C

Filter Feature :

No

Operating Temperature Max Deg. C :

105C

Pitch (mm) :

2.54(mm)

HTS Code :

8536.69.40.30

Number of Contacts :

4Power/24Signal(POS)

Packaging :

Tray

Operating Temperature Min Deg. C :

-20C

Number of Circuits :

28

ECCN Code :

EAR99

Tradename :

EXTreme PowerPlus

Termination Type :

Solder

DIN Conformance :

No

Maximum Operating Temperature :

+ 105 C

Operating Temperature :

-20°C ~ 105°C

Mount :

Edge, Through Hole

Contact Plating :

Gold

Mounting Angle :

RIGHT ANGLE

Features :

Guide Pin

Min Operating Temperature :

-20 °C

Subcategory :

Power Connectors

Contact Finish :

Gold

Product Length (mm) :

57.15(mm)

Connector Type :

Receptacle

Flammability Rating :

UL94 V-0

Housing Color :

Black

Number of Ports :

1(Port)

Minimum Operating Temperature :

- 20 C

Pitch :

6.35 mm

Termination :

Solder

Product Type :

Power to the Board

Brand :

Molex

Number of Terminals :

28

Operating Temp Range :

-20C to 105C

IEC Conformance :

No

Voltage Rating Max :

50V

Option :

GENERAL PURPOSE

Contact Finish Termination :

Tin (Sn)

Number of Positions :

28 Position

JESD-609 Code :

e3

Product Category :

Power to the Board

Voltage Rating :

50 V

Number of Positions Loaded :

All

Product Diameter (mm) :

Not Required(mm)

Mounting Style :

Through Hole

MIL Conformance :

No

Body/Shell Style :

Receptacle

Manufacturer :

Molex

Current Rating (Max) :

(50/30/2.5)/CONTACT(A)

Housing Material :

Thermoplastic

Reach Compliance Code :

Compliant

Contact Layout, Typical :

24 Signal, 4 Power

Number of Rows :

4 Row

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Contact Material :

Tin

Orientation :

RIGHT ANGLE

Number of Columns :

-

Body Orientation :

RIGHT ANGLE

Package :

Box

Shell Material :

GLASS FILLED LIQUID CRYSTAL POLYMER

Color :

Black

Contact Finish Thickness :

30.0µin (0.76µm)
