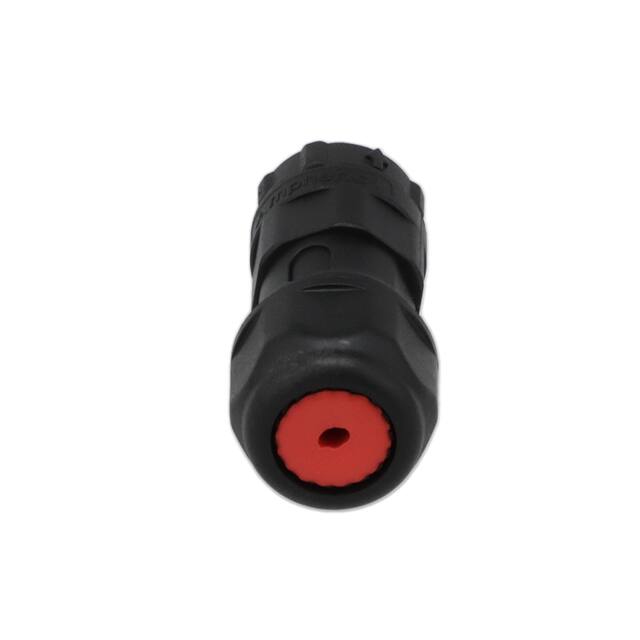

AD-04BMMB-QL8AP0

Manufacturer :

Amphenol LTW

Product Category :

Circular Connector Assemblies

Package :

Bag

Shell Size - Insert :

A-5

RoHS :

Details

Connector Type :

Receptacle, Male Pins

Fastening Type :

Push-Pull

Contact Plating :

Gold

Subcategory :

Circular Connectors

Contact Gender :

Pin (Male)

Backshell Material, Plating :

Thermoplastic

Shell Material :

-

Current Rating (Amps) :

5A

Primary Material :

-

Shell Size, MIL :

-

Operating Temperature :

-40°C ~ 105°C

Accessory Type :

-

Product Type :

Standard Circular Connector

IP Rating :

IP68

Features :

Backshell, Coupling Nut

Termination Style :

Screw

Color :

Black

Contact Finish - Mating :

Gold

Base Product Number :

AD-04BMMB

Housing Gender :

Male

Voltage Rating :

-

Ingress Protection :

IP68 - Dust Tight, Waterproof

Material Flammability Rating :

-

Number of Contacts :

4

Orientation :

Keyed

Mounting Type :

Free Hanging (In-Line)

Current Rating :

5 A

Termination Method :

Screw

Product Status :

Active

Series :

X-Lok

Product Category :

Standard Circular Connector

Mating Cycles :

1000 Cycle

Shell Size :

-

Contact Finish Thickness - Mating :

-

Applications :

-

Product :

Connectors

Shielding :

Unshielded

Manufacturer :

Amphenol

Contact Material :

COPPER ALLOY

Cable Opening :

0.157" ~ 0.315" (4.00mm ~ 8.00mm)

Flammability Rating :

UL 94 V-0

Mounting Angle :

Straight

Brand :

Amphenol LTW

Number of Positions :

4

Shell Finish :

-

Termination :

Screw

Mating Style :

Latch Lock

Mounting Feature :

-

Mounting Style :

CABLE

Insert Material :

Polyamide (PA), Nylon, Glass Filled
