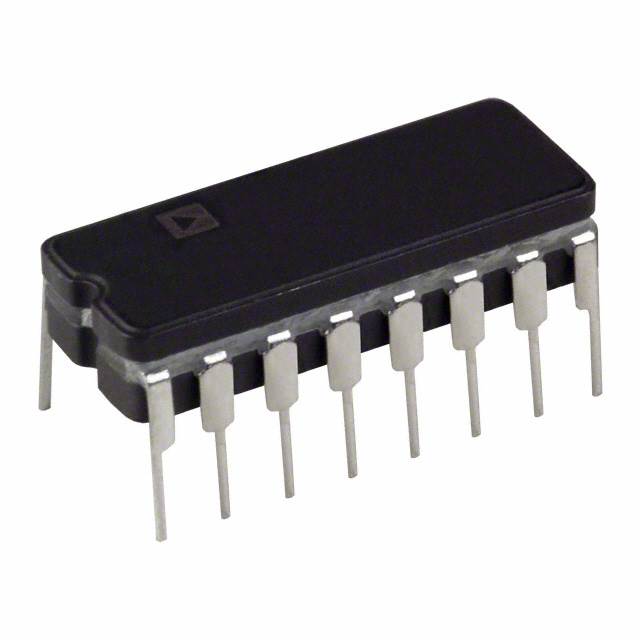

AD7501JQ
Or copy the link below:
- Mfr.Part #
- AD7501JQ
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- 16-CDIP (0.300, 7.62mm)
- Datasheet
- Download
- Description
- IC MULTIPLEXER 8X1 16CDIP
- Stock
- 28,015
- In Stock ：
- 28,015
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Analog Switches, Multiplexers, Demultiplexers
- Mounting Type :
- Through Hole
- Terminal Finish :
- TIN LEAD
- Package Shape :
- RECTANGULAR
- Series :
- -
- Width :
- 7.62 mm
- Base Product Number :
- AD7501
- Analog IC - Other Type :
- SINGLE-ENDED MULTIPLEXER
- Package :
- Tube
- Pin Count :
- 16
- Supplier Device Package :
- 16-CERDIP
- Technology :
- CMOS
- Number of Terminals :
- 16
- Reach Compliance Code :
- Unknown
- Manufacturer :
- Rochester Electronics LLC
- Temperature Grade :
- Other
- JESD-609 Code :
- e0
- Neg Supply Voltage-Nom (Vsup) :
- -15 V
- Terminal Position :
- Dual
- Terminal Form :
- THROUGH-HOLE
- On-state Resistance Match-Nom :
- 6.8 Ω
- Length :
- 19.05 mm
- Product Status :
- Obsolete
- Pbfree Code :
- No
- Terminal Pitch :
- 2.54 mm
- JESD-30 Code :
- R-GDIP-T16
- Surface Mount :
- No
- Number of Channels :
- 8
- Seated Height-Max :
- 5.08 mm
- Peak Reflow Temperature (Cel) :
- Not Applicable
- Number of Functions :
- 1
- Package / Case :
- 16-CDIP (0.300, 7.62mm)
- Qualification Status :
- COMMERCIAL
- Datasheets
- AD7501JQ
Analog Switches, Multiplexers, Demultiplexers Analog Devices, Inc. AD7501JQ Overview
The AD7501JQ from Analog Devices, Inc. stands as a pinnacle in the realm of Analog Switches, Multiplexers, and Demultiplexers, catering specifically to advanced electronic systems requiring high reliability and precision. This integrated circuit is a high-performance 8x1 multiplexer, encapsulated in a robust 16-pin CDIP package, designed to seamlessly manage multiple analog signals through a single output. Its inherent ability to handle a variety of signal levels makes it an indispensable component in complex electronics, where space and precision are at a premium. The Analog Switches, Multiplexers, Demultiplexers Analog Devices, Inc. AD7501JQ is engineered to optimize system performance while minimizing signal distortion and loss, making it an ideal choice for serious electronics developers and engineers.
AD7501JQ Features
The AD7501JQ offers several key features that enhance its utility in sophisticated electronic circuits:
- High switching speed and low on-resistance ensure efficient signal transmission with minimal loss.
- Compatibility with dual supply voltages (+15V and -15V) broadens its applicability across various signal levels.
- Durable 16-pin CDIP packaging guarantees robustness in a variety of environmental conditions.
- Break-before-make switching action prevents signal overlap and ensures clean, crisp transitions between channels.
AD7501JQ Applications
- Data Acquisition Systems: Utilized for selecting different sensor inputs, allowing for efficient data processing and multiplexing in real-time monitoring applications.
- Test Equipment: Essential in testing setups for switching between different test conditions or channel inputs, enhancing the equipment's flexibility and capability.
- Audio/Video Signal Routing: Facilitates the routing of audio or video signals in multimedia systems, ensuring high-fidelity signal integrity across various input sources.
- Communication Systems: Applied in the selection of different communication channels or signal paths, optimizing the management and distribution of communication signals.
