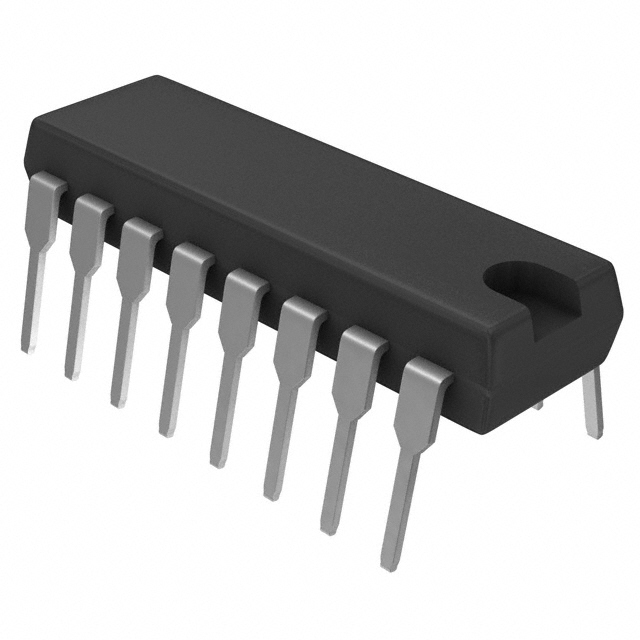

AD7501KN
Or copy the link below:
- Mfr.Part #
- AD7501KN
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- 16-DIP (0.300, 7.62mm)
- Datasheet
- Download
- Description
- IC MULTIPLEXER 8X1 16DIP
- Stock
- 1,518
- In Stock ：
- 1,518
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Analog Switches, Multiplexers, Demultiplexers
- Mounting Type :
- Through Hole
- Subcategory :
- Multiplexer or Switches
- Power Supplies :
- +-15 V
- Pin Count :
- 16
- Package / Case :
- 16-DIP (0.300, 7.62mm)
- Supplier Device Package :
- 16-PDIP
- Pbfree Code :
- No
- Number of Channels :
- 8
- ECCN Code :
- EAR99
- Terminal Position :
- Dual
- Analog IC - Other Type :
- SINGLE-ENDED MULTIPLEXER
- JESD-30 Code :
- R-PDIP-T16
- JESD-609 Code :
- e0
- Reach Compliance Code :
- Unknown
- Technology :
- CMOS
- Manufacturer :
- Analog Devices Inc
- Switch-off Time-Max :
- 80 ns
- HTS Code :
- 8542.39.00.01
- Surface Mount :
- No
- Number of Terminals :
- 16
- Length :
- 20.13 mm
- Terminal Pitch :
- 2.54 mm
- Signal Current-Max :
- 0.02 A
- Package :
- Tube
- Product Status :
- Obsolete
- Supply Current-Max (Isup) :
- 0.8 mA
- Number of Functions :
- 1
- Temperature Grade :
- COMMERCIAL
- Switch-on Time-Max :
- 80 ns
- Peak Reflow Temperature (Cel) :
- Not Applicable
- Qualification Status :
- COMMERCIAL
- Series :
- -
- Neg Supply Voltage-Nom (Vsup) :
- -15 V
- On-state Resistance Match-Nom :
- 6.8 Ω
- Seated Height-Max :
- 5.33 mm
- Base Product Number :
- AD7501
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Package Shape :
- RECTANGULAR
- Width :
- 7.62 mm
- Terminal Form :
- THROUGH-HOLE
- Datasheets
- AD7501KN
Analog Switches, Multiplexers, Demultiplexers Analog Devices, Inc. AD7501KN Overview
The AD7501KN by Analog Devices, Inc. stands out in the market of Analog Switches, Multiplexers, and Demultiplexers. This high-quality integrated circuit is specifically designed to handle complex signal routing with its 8-channel multiplexing capability, housed in a robust 16-pin DIP package. It offers reliable performance in managing multiple inputs, which is essential for various high-demand applications. The Analog Switches, Multiplexers, Demultiplexers Analog Devices, Inc. AD7501KN facilitates precise control and flexible integration into existing systems, making it a versatile choice for engineers and designers seeking to enhance their electronic designs with superior signal integrity and operational efficiency.
AD7501KN Features
The AD7501KN multiplexer features include:
- 8:1 multiplexer configuration for efficient channel management.
- Durable 16-pin DIP (Dual In-line Package) ensuring easy installation and handling.
- Compatibility with dual and single supply operations, providing versatility in various power environments.
- Low power dissipation, contributing to energy-efficient designs.
- High off isolation and low crosstalk to maintain signal integrity.
- Wide operating temperature range, suitable for industrial applications.
AD7501KN Applications
- Data Acquisition Systems: Utilizes its multiplexing capability to handle multiple sensor inputs, reducing complexity and enhancing data processing efficiency.
- Communication Equipment: Employs its high isolation features to manage different communication signals without interference, ensuring clear data transmission.
- Audio/Video Signal Routing: Takes advantage of its low crosstalk and high fidelity signal handling to switch between different A/V sources seamlessly in consumer electronics.
- Test Equipment: Integrates into electronic testing setups to allow selective channel analysis, optimizing testing procedures and reliability.
- Industrial Control Systems: Supports robust industrial applications by managing multiple control signals within harsh environments, thanks to its wide temperature range and durable packaging.
