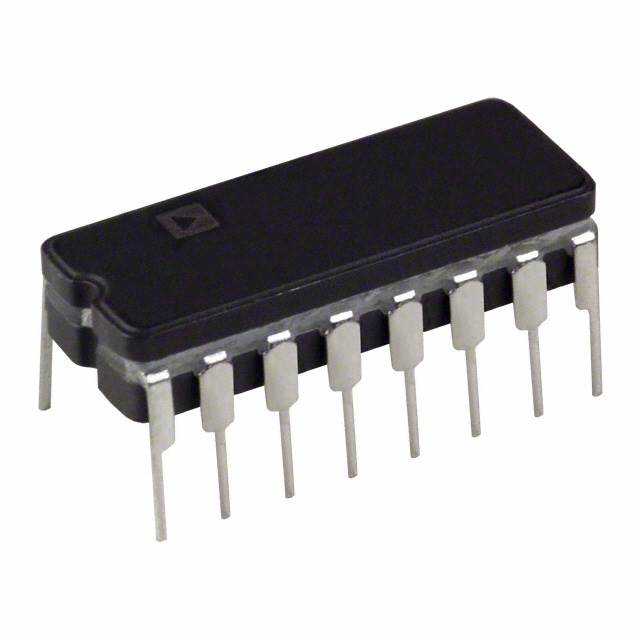

AD7501SQ
Or copy the link below:
- Mfr.Part #
- AD7501SQ
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- 16-CDIP (0.300, 7.62mm)
- Datasheet
- Download
- Description
- IC MULTIPLEXER 8X1 16CDIP
- Stock
- 23,532
- In Stock ：
- 23,532
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Analog Switches, Multiplexers, Demultiplexers
- Terminal Form :
- THROUGH-HOLE
- Temperature Grade :
- Military
- Terminal Finish :
- TIN LEAD
- Pin Count :
- 16
- JESD-30 Code :
- R-GDIP-T16
- Switch-off Time-Max :
- 80 ns
- Analog IC - Other Type :
- SINGLE-ENDED MULTIPLEXER
- Width :
- 7.62 mm
- Terminal Position :
- Dual
- Number of Functions :
- 1
- Reach Compliance Code :
- Unknown
- Pbfree Code :
- No
- Package :
- Tube
- Peak Reflow Temperature (Cel) :
- Not Applicable
- Base Product Number :
- AD7501
- Series :
- -
- Mounting Type :
- Through Hole
- Switch-on Time-Max :
- 80 ns
- Package Shape :
- RECTANGULAR
- Technology :
- CMOS
- Manufacturer :
- Rochester Electronics LLC
- JESD-609 Code :
- e0
- Product Status :
- Obsolete
- On-state Resistance Match-Nom :
- 6.8 Ω
- Length :
- 19.05 mm
- Seated Height-Max :
- 5.08 mm
- Package / Case :
- 16-CDIP (0.300, 7.62mm)
- Surface Mount :
- No
- Number of Channels :
- 8
- Supplier Device Package :
- 16-CERDIP
- Number of Terminals :
- 16
- Qualification Status :
- COMMERCIAL
- Neg Supply Voltage-Nom (Vsup) :
- -15 V
- Terminal Pitch :
- 2.54 mm
- Datasheets
- AD7501SQ
Analog Switches, Multiplexers, Demultiplexers Analog Devices, Inc. AD7501SQ Overview
The Analog Devices, Inc. AD7501SQ is a high-performance, durable 8-channel multiplexer that effectively addresses complex data routing and signal conditioning challenges. Engineered by a leading name in semiconductor technologies, this IC facilitates efficient handling of multiple input signals, allowing for seamless selection between them without compromising on signal integrity. The AD7501SQ is built in a compact 16-pin CDIP package, making it ideal for integration into systems where space is at a premium and reliability is crucial. Its robust design and advanced circuitry make it a standout choice for developers looking to manage multiple analog signals in their electronic designs.
AD7501SQ Features
The AD7501SQ multiplexer features include single-ended inputs, low on-resistance, high off-isolation, and a wide operating voltage range, which ensures compatibility with a variety of digital systems. This IC also boasts a fast switching speed, which is vital for applications requiring quick response times and high-frequency operation. Additionally, its low power consumption makes it suitable for use in power-sensitive applications.
AD7501SQ Applications
- Data Acquisition Systems: The AD7501SQ can be utilized to switch between different sensor inputs, thereby facilitating efficient data collection and processing in industrial and scientific measurement systems.
- Communication Equipment: In communication systems, this multiplexer helps in routing various signal paths, enhancing the flexibility and functionality of network interfaces and radio frequency modules.
- Audio/Video Signal Routing: Its ability to seamlessly switch audio and video signals makes the AD7501SQ ideal for multimedia applications, ensuring high-quality output with minimal signal degradation.
- Medical Monitoring Devices: The precise control offered by the AD7501SQ is crucial for medical devices, where it is used to handle multiple patient monitoring signals, contributing to reliable and accurate diagnostics.
