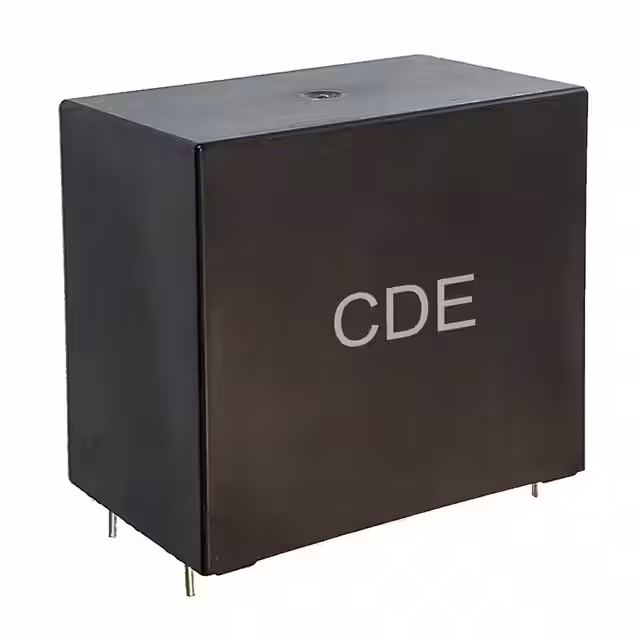

ALH305K401A082

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Number of Pins :

2 Pin

Manufacturer :

Cornell Dubilier

Package :

Bulk

Type :

Power Film Capacitors

Product :

General Film Capacitors

Dielectric Material :

Polypropylene (PP)

Tolerance :

±10%

Applications :

Automotive; EMI, RFI Suppression

Lead Style :

Straight

Lead Diameter :

0.8 mm

Subcategory :

Capacitors

Product Type :

Film Capacitors

ESR :

5.7mOhm

Length :

37 mm

Minimum Operating Temperature :

- 40 C

Series :

ALH

RoHS :

Y

Size / Dimension :

1.260" L x 0.866" W (32.00mm x 22.00mm)

Voltage :

400

Maximum Operating Temperature :

+ 105 C

Operating Temperature :

-40°C ~ 105°C

Product Category :

Film Capacitors

Voltage Rating - AC :

400V

Capacitance Tolerance :

± 10%

ESR (Equivalent Series Resistance) :

5.7 mOhms

Ripple Current :

-

Height - Seated (Max) :

1.488" (37.80mm)

Product Height :

37mm

Height :

22 mm

Termination Style :

Snap in

Product Status :

Active

Width :

32 mm

Lead Spacing :

1.083" (27.50mm)

Ratings :

AEC-Q200

Product Width :

22mm

Product Length :

32mm

Capacitance :

3 μF

RMS Current (Irms) :

9A

Dielectric :

Polypropylene (PP)

Qualification :

AEC-Q200

Diameter :

-

Voltage Rating - DC :

-

Packaging :

Plastic UL94V-0

Termination :

PC Pins

Brand :

Cornell Dubilier - CDE

Features :

85C/85% Humidity
