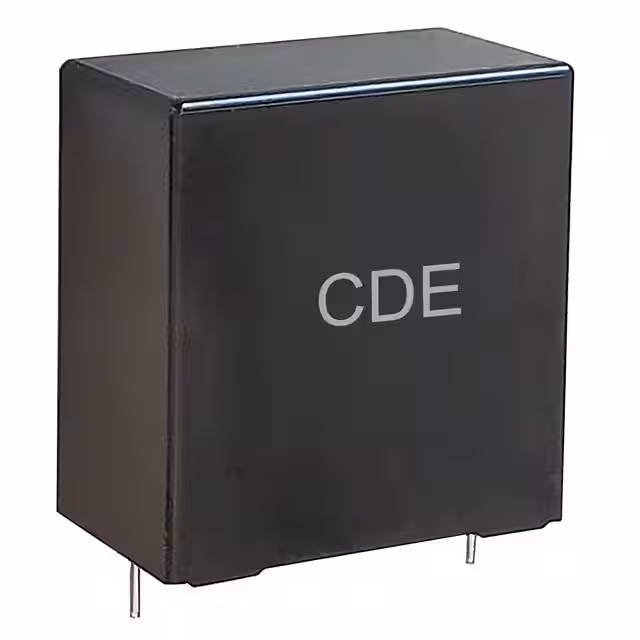

ALH335K351A082

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Qualification :

AEC-Q200

Product :

General Film Capacitors

RoHS :

Y

Product Status :

Active

Product Type :

Film Capacitors

Width :

32 mm

Termination Style :

Snap in

Voltage Rating - DC :

-

Size / Dimension :

1.260" L x 0.866" W (32.00mm x 22.00mm)

Maximum Operating Temperature :

+ 105 C

Packaging :

Plastic UL94V-0

Package :

Bulk

Product Length :

32mm

ESR :

5.7mOhm

Lead Spacing :

1.083" (27.50mm)

Subcategory :

Capacitors

Features :

85C/85% Humidity

Manufacturer :

Cornell Dubilier

Height - Seated (Max) :

1.488" (37.80mm)

Number of Pins :

2 Pin

Voltage :

350

Dielectric :

Polypropylene (PP)

Lead Style :

Straight

Height :

22 mm

Lead Diameter :

0.8 mm

Tolerance :

±10%

Applications :

Automotive; EMI, RFI Suppression

ESR (Equivalent Series Resistance) :

5.7 mOhms

Diameter :

-

RMS Current (Irms) :

9A

Ripple Current :

-

Termination :

PC Pins

Ratings :

AEC-Q200

Operating Temperature :

-40°C ~ 105°C

Type :

Power Film Capacitors

Minimum Operating Temperature :

- 40 C

Product Height :

37mm

Length :

37 mm

Product Width :

22mm

Capacitance :

3.3 µF

Series :

ALH

Dielectric Material :

Polypropylene (PP)

Product Category :

Film Capacitors

Capacitance Tolerance :

± 10%

Voltage Rating - AC :

350V

Brand :

Cornell Dubilier - CDE
