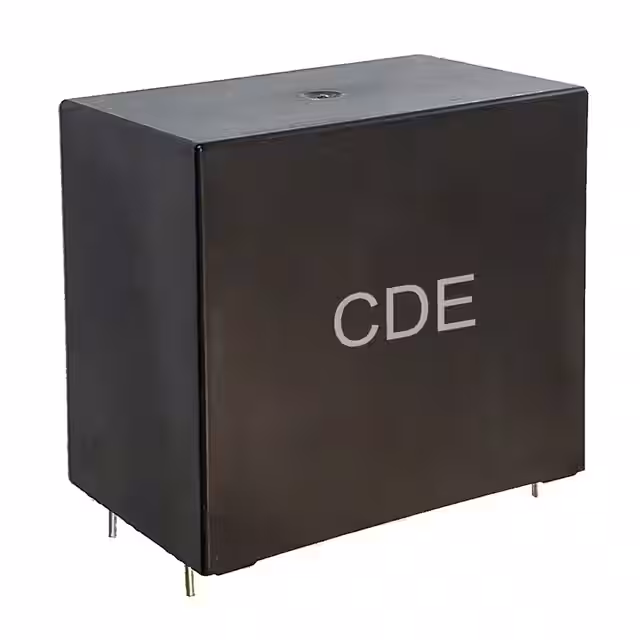

ALH306K251C064

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Brand :

Cornell Dubilier - CDE

Number of Pins :

4 Pin

Ratings :

AEC-Q200

Capacitance :

30 µF

Product Category :

Film Capacitors

Maximum Operating Temperature :

+ 105 C

Lead Spacing :

2.067" (52.50mm)

Package :

Bulk

Product Type :

Film Capacitors

Voltage Rating - DC :

-

ESR :

5.3mOhm

ESR (Equivalent Series Resistance) :

5.3 mOhms

Package / Case :

Radial - 4 Leads

Packaging :

Plastic UL94V-0

Termination :

PC Pins

RoHS :

Y

Lead Style :

Straight

Capacitance Tolerance :

± 10%

Features :

85C/85% Humidity

Type :

Power Film Capacitors

Product Status :

Active

Tolerance :

±10%

Subcategory :

Capacitors

Diameter :

-

RMS Current (Irms) :

14A

Applications :

Automotive; EMI, RFI Suppression

Ripple Current :

-

Size / Dimension :

2.264" L x 1.181" W (57.50mm x 30.00mm)

Series :

ALH

Product Width :

30mm

Product :

General Film Capacitors

Qualification :

AEC-Q200

Length :

57.5 mm

Manufacturer :

Cornell Dubilier

Operating Temperature :

-40°C ~ 105°C

Product Length :

57.5mm

Voltage Rating - AC :

250V

Termination Style :

Snap in

Lead Diameter :

1.2 mm

Height :

30 mm

Minimum Operating Temperature :

- 40 C

Dielectric Material :

Polypropylene (PP)

Dielectric :

Polypropylene (PP)

Voltage :

250

Product Height :

45mm

Mounting Type :

Through Hole

Width :

45 mm

Height - Seated (Max) :

1.811" (46.00mm)
